Product Model
qsml-1/8-4-100
Selling Points

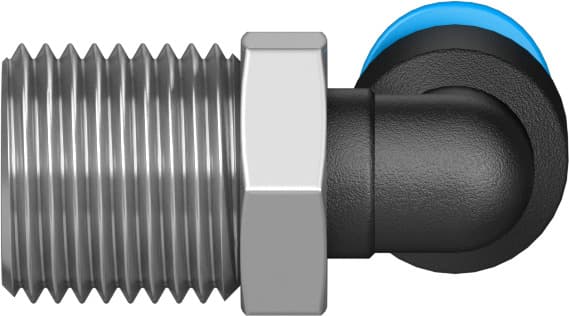

- 1The Festo QSML-1/8-4-100 push-in L-fitting features a robust L-shape design with a push-pull principle, ensuring reliable operation in various mounting positions.
- 2Specifically designed for use with compressed air as per ISO 8573-1:2010, this fitting supports lubricated operation and maintains its performance across a wide temperature range.
- 3With a corrosion resistance class of CRC 1, this fitting is ideal for applications requiring low corrosion stress, ensuring durability and longevity.
- 4The fitting is designed to be mounted in any position, offering flexibility in installation and use.
- 5Weighing just 6 grams, the QSML-1/8-4-100 is a compact and lightweight solution for pneumatic systems, making it easy to handle and integrate into various setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.5mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 6g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130764 |
Specifications may be subject to change without notice
