Product Model

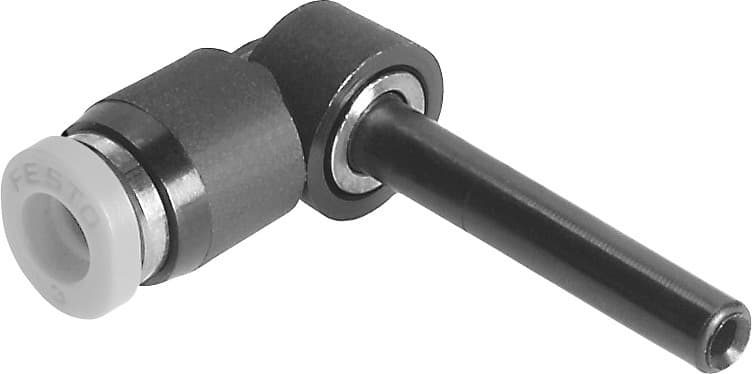

qsml-1/8h-u
Selling Points
- 1Miniature size with nominal width of 1.2 mm.
- 2Push-in sleeve Ø 1/8" for easy connection.
- 3Operating pressure range of -0.095 MPa to 1 MPa.
- 4Compatible with compressed air as per ISO 8573-1:2010.
- 5Corrosion resistance class (CRC) 1 for low corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.2mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Product weight | 1.7g |
Pneumatic connection 1 | Push-in sleeve ? 1/8" | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/8" |
Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190620 |
Specifications may be subject to change without notice
