Product Model
qsml-3h
Selling Points

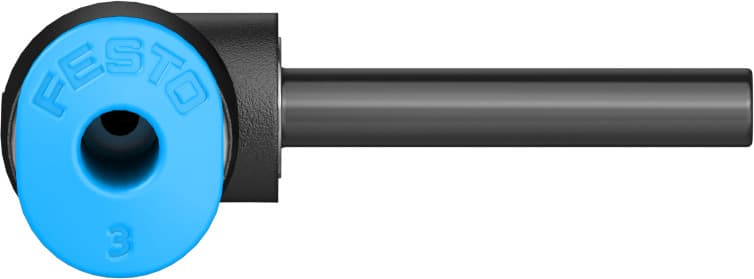

- 1The Festo QSML-3H push-in L-connector offers a mini nominal size of 1.2 mm, making it ideal for precise pneumatic connections in industrial automation systems.
- 2This fitting features an L-shape design with a push-pull principle, ensuring easy and secure mounting in any position.
- 3The QSML-3H operates within a wide temperature range of -10 °C to 80 °C and supports both lubricated and dry operation with compressed air as per ISO 8573-1:2010.
- 4With a corrosion resistance class of CRC 1 (low corrosion stress) and materials like PBT for the housing and POM for the release ring, this connector is durable and resistant to corrosion.
- 5The QSML-3H is available in packs of 10 and weighs approximately 1.7 grams, making it a lightweight yet robust component for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.2mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 1.7g |
Pneumatic connection 1 | Push-in sleeve ? 3 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153346 |
Specifications may be subject to change without notice
