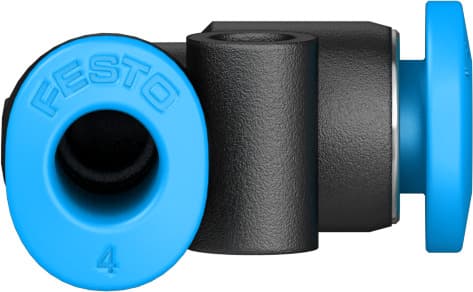

Festo QSML-4-100 Push-in L-Connector: High-Quality Pneumatic Fitting

Selling Points

1High-Quality Materials: The QSML-4-100 is made from durable Polybutylene Terephthalate (PBT) for the body and Polyoxymethylene (POM) for the release ring, ensuring long-lasting performance.
2Easy Installation: Featuring a push-pull principle, this L-shaped fitting is easy to install and requires minimal effort, making it perfect for various pneumatic applications.
3Wide Operating Range: With an operating pressure range of -0.95 to 6 bar and a temperature range of -10 to 80°C, this connector is versatile and suitable for various environments.
4Corrosion Resistance: Classified as CRC 1, this fitting offers low corrosion stress, ensuring it remains reliable even in challenging conditions.
5Compliant with Standards: Meets ISO 8573-1:2010 standards and is RoHS-compliant, making it a reliable choice for compressed air applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.5mm
Mounting position	Any	Design	L-shape
Pack size	100	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	2g
Pneumatic connection 1	for pneumatic tubing outside diameter 4 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130766

Specifications may be subject to change without notice
