Product Model
qsml-4h-3
Selling Points

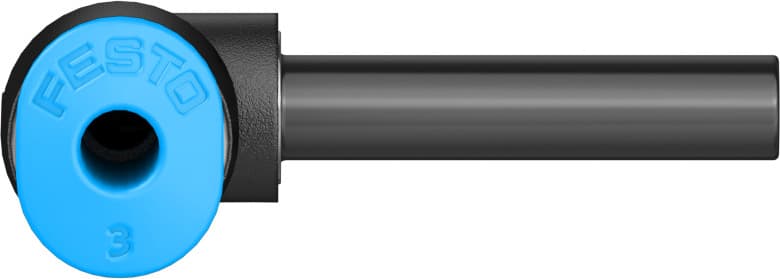

- 1The Festo QSML-4H-3 is a high-quality push-in L-connector designed for mini pneumatic connections, featuring a nominal size of 1.9 mm and an optional mounting position.
- 2This connector operates within a wide temperature range of -10 °C to 80 °C and supports operating pressures from -0.95 bar to 6 bar, making it versatile for various applications.
- 3The QSML-4H-3 is compatible with compressed air to ISO 8573-1:2010 and allows lubricated operation, ensuring smooth and efficient performance.
- 4Made from RoHS-compliant materials, including PBT for the housing and POM for the release ring, this connector offers excellent corrosion resistance with a class CRC of 1.
- 5Available in packs of 10, the Festo QSML-4H-3 is ideal for applications requiring reliable and compact pneumatic connections, ensuring minimal space usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.7mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 1.7g |
Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153349 |
Specifications may be subject to change without notice
