Product Model

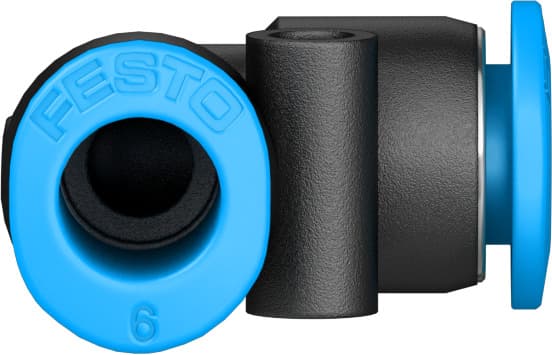

qsml-6-100
Selling Points
- 1The QSML-6-100 features a mini size with a nominal diameter of 3.4 mm, making it perfect for tight spaces in pneumatic systems.
- 2This connector operates using a push-pull principle, ensuring easy installation and reliable connections.
- 3It supports operating pressures from -0.95 bar to 6 bar and temperatures from -10°C to 80°C, making it versatile for various applications.
- 4Constructed with PBT housing, POM release ring, and NBR tubing seal, it offers high corrosion resistance and durability.
- 5The QSML-6-100 is compliant with ISO 8573-1:2010 and meets RoHS standards, ensuring it is safe for use in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.4mm |
Mounting position | Any | Design | L-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 4g |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130767 |
Specifications may be subject to change without notice
