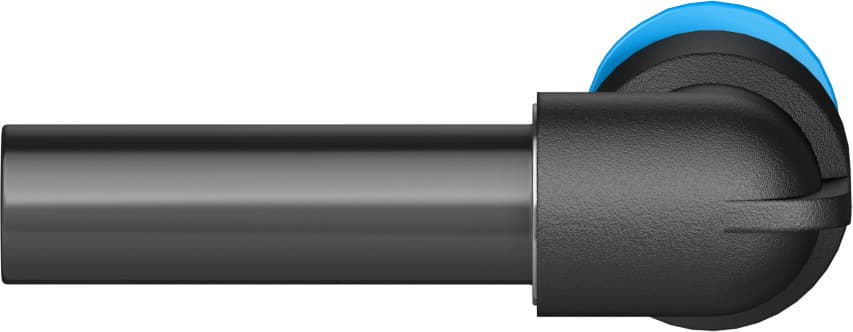

Festo QSML-6H Push-in L-Connector - High-Quality Pneumatic Fittings

Selling Points

1The Festo QSML-6H push-in L-connector is designed for mini pneumatic systems, offering a nominal width of 3.2 mm and a compact size suitable for various applications.
2This connector operates within a wide temperature range of -10°C to 80°C and supports both lubricated and unlubricated operations, ensuring flexibility in different environments.
3With a corrosion-resistant class KBK of 1 (low corrosion stress), the QSML-6H is ideal for applications requiring minimal maintenance and durability.
4The connector is made from RoHS-compliant materials, including PBT for the housing and POM for the sleeve, ensuring environmental sustainability and compliance with regulations.
5The Festo QSML-6H supports operating pressures up to 14 bar, making it suitable for a variety of pneumatic applications, including those in maritime environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	3.2mm
Mounting position	Any	Design	L-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	2.4g
Pneumatic connection 1	Push-in sleeve ? 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153348

Specifications may be subject to change without notice
