Product Model
qsml-6h-4
Selling Points

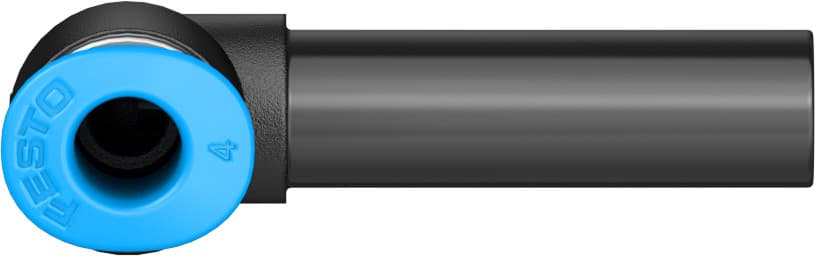

- 1The Festo QSML-6H-4 push-in L-connector offers a nominal size of 1.9 mm, making it ideal for precise pneumatic connections. Its push/pull principle design ensures easy assembly and disassembly.
- 2This connector operates within a wide temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, making it suitable for various industrial applications.
- 3The QSML-6H-4 is designed for use with compressed air in accordance with ISO 8573-1:2010, ensuring compliance with industry standards. It also supports lubricated operation for enhanced performance.
- 4The connector features a corrosion-resistant class of 1 (low corrosion stress), making it suitable for use in environments where corrosion is a concern. The housing material is PBT, and the release ring is POM, ensuring durability and reliability.
- 5The Festo QSML-6H-4 push-in L-connector is available in packs of 10 units, making it convenient for bulk purchases. It is also RoHS compliant, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.9mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 1.9g |
Pneumatic connection 1 | Push-in sleeve ? 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153350 |
Specifications may be subject to change without notice
