Product Model
qsml-g1/8-4-100
Selling Points

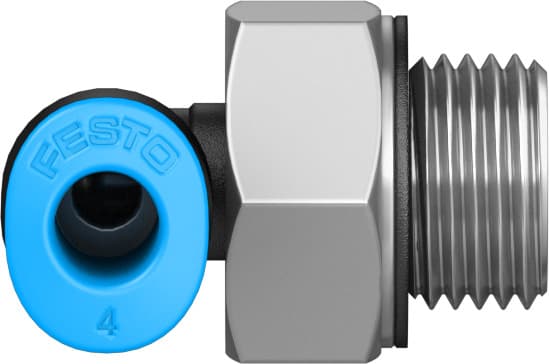

- 1The Festo QSML-G1/8-4-100 is designed for mini applications, making it perfect for compact pneumatic systems.
- 2This L-fitting features a push-pull principle, ensuring easy and secure connections.
- 3Equipped with a sealing ring, this fitting provides reliable sealing against compressed air, ensuring efficient operation.
- 4The QSML-G1/8-4-100 supports a wide operating pressure range from -0.95 to 6 bar, making it versatile for various applications.
- 5Made from RoHS-compliant materials like PBT for the housing and POM for the release ring, this fitting meets modern environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.5mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 9g | Type of mounting | External hexagon, AF 13 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132897 |
