Product Model
qsml-g1/8-6
Selling Points

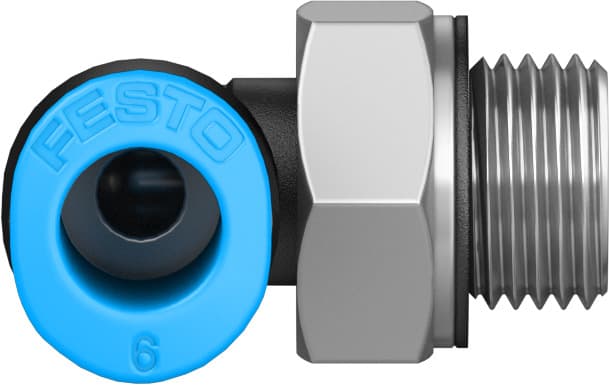

- 1The Festo QSML-G1/8-6 push-in L-fitting is designed for easy integration into existing pneumatic systems, making it a robust and efficient solution for engineers.
- 2This L-fitting features a male thread G1/8 and a push-to-connect metric port of 6 mm, ensuring secure and reliable connections in various pneumatic applications.
- 3The QSML-G1/8-6 operates within a temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, making it suitable for diverse industrial environments.
- 4The fitting is made from RoHS-compliant materials, including nickel-plated brass for the threaded portion and PBT for the housing, ensuring high corrosion resistance and durability.
- 5With a nominal tightening torque of 5.4 Nm and a tolerance of ±20%, the QSML-G1/8-6 offers precise control and ease of installation, reducing the risk of damage or leakage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 9.7g | Type of mounting | External hexagon, AF 13 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186269 |
Specifications may be subject to change without notice
