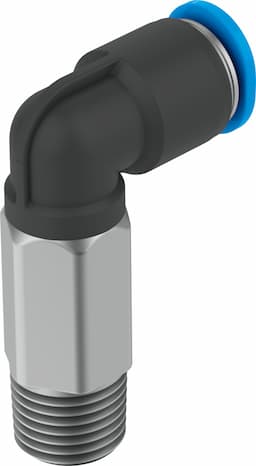

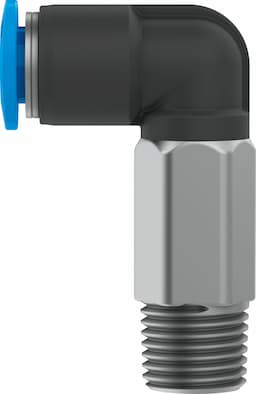

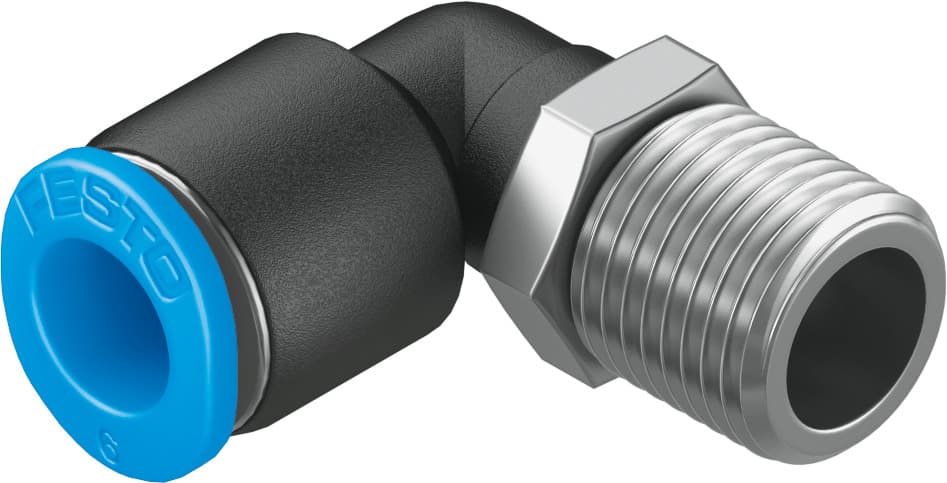

Festo QSML-1/8-6 Push-in L-Fitting - High-Performance Pneumatic Fitting

Selling Points

1The Festo QSML-1/8-6 push-in L-fitting ensures optimal air flow and secure connections, enhancing the reliability and effectiveness of your pneumatic operations.
2This fitting can be mounted in any position, making it versatile for various industrial applications.
3With a corrosion resistance class of CRC 1, the QSML-1/8-6 is designed to handle low corrosion stress, ensuring durability in harsh environments.
4The fitting operates within a wide pressure range of -0.95 to 6 bar, and up to 14 bar with temperature-dependent pressure, making it suitable for diverse applications.
5The QSML-1/8-6 conforms to ISO 8573-1:2010 and is RoHS-compliant, ensuring it meets international standards for pneumatic fittings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	3.1mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	L-shape, long	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	7Nm	Tolerance for nominal tightening torque	± 20%
Product weight	14g	Type of mounting	External hexagon, AF 10
Pneumatic connection 1	External thread R1/8	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	153342

Specifications may be subject to change without notice
