Product Model

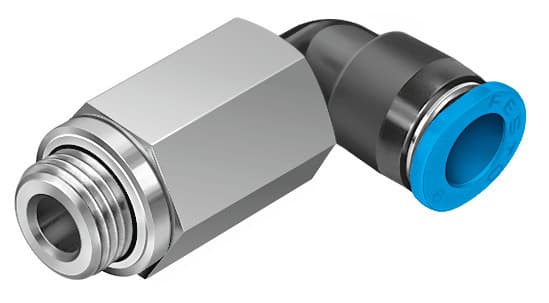

qsmll-g1/8-4
Selling Points
- 1The Festo QSML-G1/8-4 push-in L-fitting offers superior connection stability in pneumatic systems, ensuring reliable functionality and enhanced operational efficiency.
- 2This mini-sized fitting features a nominal width of 2.5 mm and is equipped with a sealing ring for secure connections, allowing for any mounting position.
- 3The QSML-G1/8-4 operates within a temperature range of -10°C to 80°C and supports both lubricated and dry operation, making it versatile for various industrial settings.
- 4With a nominal tightening torque of 7 Nm and a tolerance of ±20%, this fitting ensures consistent and secure connections, reducing the risk of leaks or damage.
- 5The Festo QSML-G1/8-4 is designed with corrosion-resistant materials, classified as CRC 1 (low corrosion stress), making it suitable for use in environments with moderate corrosive conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 23g | Type of mounting | External hexagon, AF 13 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186270 |
