Product Model
qsml-m3-4-100
Selling Points

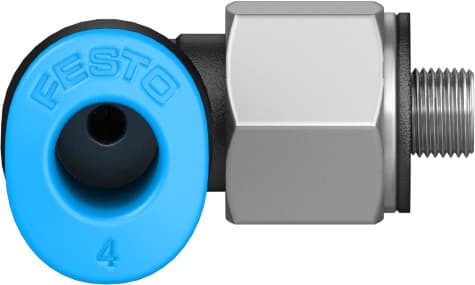

- 1The Festo QSML-M3-4-100 is a versatile L-shaped elbow fitting designed for compressed air applications, ensuring reliable performance in a wide range of tasks.
- 2This fitting features a push-in principle with a 360° orientable design, making it easy to install and use in any assembly position.
- 3With a nominal size of 1.3 mm and a maximum operating pressure of 6 bar, the QSML-M3-4-100 is suitable for various standard applications requiring high pressure and temperature ranges.
- 4The fitting includes a sealing ring for secure connections and is compatible with ISO 8573-1:2010 standards, ensuring compliance with industry regulations.
- 5Made from high-quality materials like polybutylene terephthalate (PBT) and polyoxymethylene (POM), this fitting offers excellent corrosion resistance and durability, making it suitable for demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 0.48Nm | Tolerance for nominal tightening torque | ± 55% |
Product weight | 3g | Type of mounting | External hexagon, AF 8 |
Pneumatic connection 1 | External thread M3 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130769 |
Specifications may be subject to change without notice
