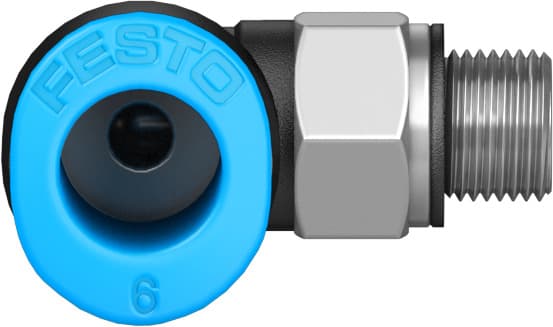

Festo QSML-M5-6-100 Push-in L-Fitting | Miniature Pneumatic Fittings

Selling Points

1The QSML-M5-6-100 features a mini size with a nominal diameter of 2.1 mm, making it perfect for compact pneumatic systems.
2Equipped with a sealing ring on the screwed plug, ensuring reliable and leak-free connections in various operating conditions.
3Offers optional mounting positions, providing flexibility in system design and installation.
4The L-shape design allows for easy push-pull operation, simplifying the connection process in pneumatic systems.
5Supports operating pressures from -0.095 MPa to 0.6 MPa (or -0.95 bar to 6 bar), and temperature-dependent pressures up to 1.4 MPa (or 14 bar), ensuring versatility in different applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	L-shape	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	1.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	4.1g	Type of mounting	External hexagon, AF 8
Pneumatic connection 1	External thread M5	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	130772
