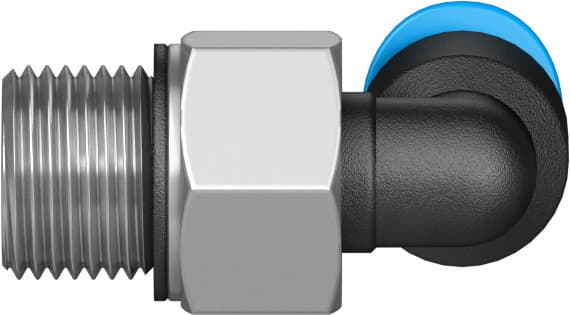

Festo QSML-M7-4-100 Push-in L-Fitting - High-Quality Pneumatic Connection

Selling Points

1The Festo QSML-M7-4-100 features a reliable push-pull principle and a sealing ring for secure connections in compressed air applications.
2With a mini nominal size of 2 mm, this L-fitting is perfect for space-constrained environments, ensuring efficient pneumatic system setup.
3Suitable for operating pressures from -0.95 to 6 bar and temperatures between -10°C and 80°C, making it versatile for various industrial applications.
4Classified as CRC 1, this fitting exhibits low corrosion stress, ensuring durability in demanding environments.
5Featuring a male thread M7 and an external hexagon for easy mounting, the QSML-M7-4-100 simplifies the installation process in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	L-shape	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	2.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	5.6g	Type of mounting	External hexagon, AF 10
Pneumatic connection 1	External thread M7	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	130773
