Product Model
qsmlv-m7-4-i
Selling Points

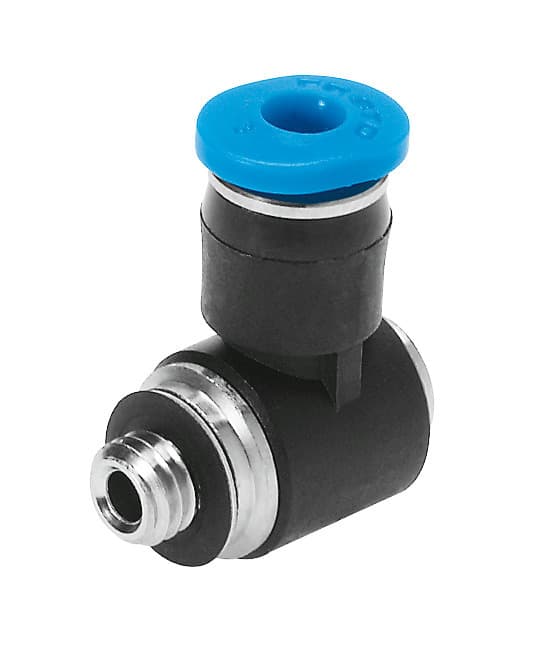

- 1The Festo QSMLV-M7-4-I push-in L-fitting features an internal hexagon size of 3 mm, ensuring secure and precise mounting in pneumatic systems.
- 2This fitting supports a male thread M7 and is designed for tubing with an outside diameter of 4 mm, providing a robust connection for compressed air.
- 3The QSMLV-M7-4-I operates within a temperature range of -10 °C to 80 °C and offers a nominal torque of 2.2 Nm, making it suitable for various industrial environments.
- 4With a low corrosion resistance class (CRC) 1, this fitting is designed to withstand minimal corrosion stress, ensuring long-lasting performance in applications where corrosion is a concern.
- 5The push-in L-fitting is made from nickel-plated brass for the screwed plug and PBT for the housing, ensuring durability and resistance to wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.9mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 2.2Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 7.4g | Type of mounting | Internal hexagon, AF 3 |
Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130832 |
