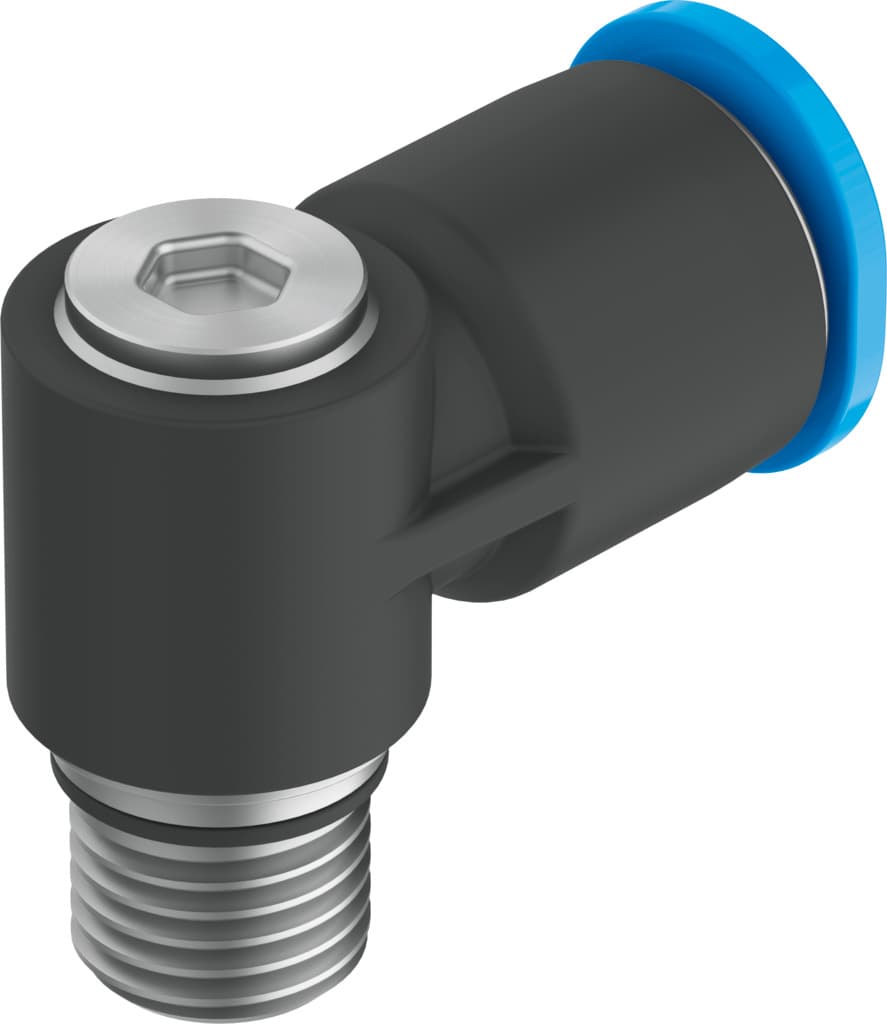

QSMLV-M7-6-I Push-in L-Fitting by Festo - High-Quality Pneumatic Connection

Selling Points

1The QSMLV-M7-6-I push-in L-fitting is designed to operate within a wide pressure range, from -0.95 bar to 6 bar, making it suitable for various industrial applications.
2With a nominal width of 1.8 mm, this fitting is ideal for miniaturized pneumatic systems, ensuring efficient use of space in compact designs.
3The fitting can be mounted in any position, offering flexibility in system design and installation.
4The QSMLV-M7-6-I features a low corrosion stress class (CRC 1), ensuring durability in harsh environments.
5The push-in design allows for quick and easy installation without the need for tools, reducing setup time and increasing productivity.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	1.8mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	L-shape	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	2.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	6.2g	Type of mounting	Internal hexagon, AF 3
Pneumatic connection 1	External thread M7	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Hollow bolt material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130833
