Product Model
qsm-m5-1/4-i-u-m
Selling Points

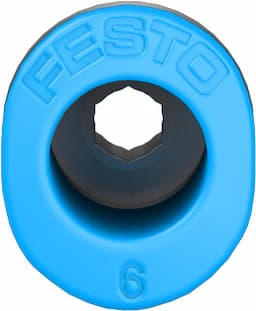

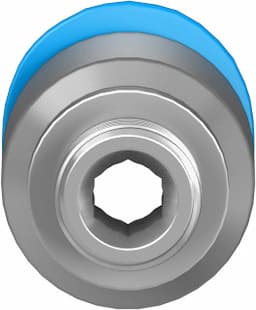

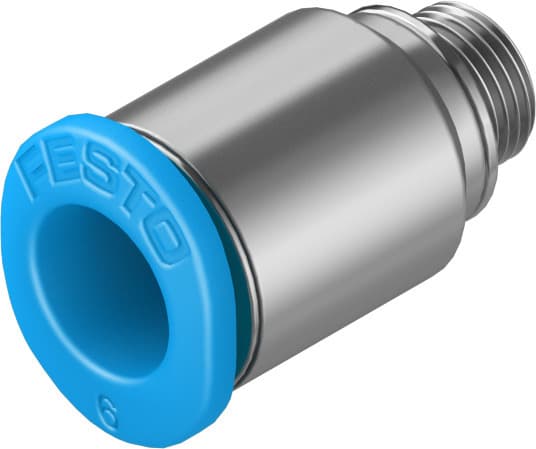

- 1The Festo QSM-M5-1/4-I-U-M push-in fitting is designed for mini applications, featuring a male thread M5 and a 1/4" outside diameter for tubing, ensuring secure and reliable connections.
- 2This fitting boasts a sealing ring for lubricated operation, making it suitable for compressed air applications in accordance with ISO8573-1:2010, ensuring optimal performance and durability.
- 3The QSM-M5-1/4-I-U-M is constructed from nickel-plated brass for the base and threaded portion, with a polymer collar, providing excellent corrosion resistance and mechanical strength.
- 4With an operating pressure range of -13.78 to 145 psi and an ambient temperature range of 32 to 140°F, this fitting is versatile and can be used in various industrial settings.
- 5The Festo QSM-M5-1/4-I-U-M push-in fitting is part of the mini series, offering a compact design that fits into tight spaces, making it ideal for applications where space is limited.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.489mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 1.33Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 3.799g | Type of mounting | Internal hexagon, AF 2.5 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
Ambient temperature Fahrenheit | 32°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | Brass Nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130591 |
Specifications may be subject to change without notice
