Product Model

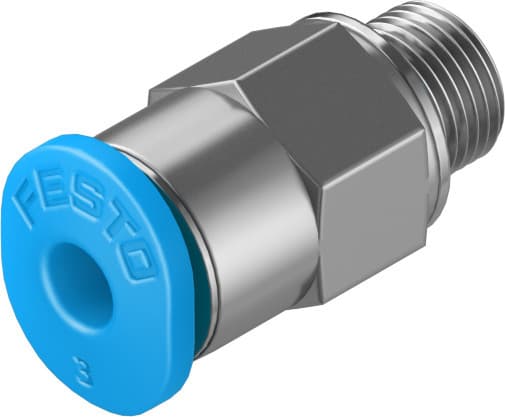

qsm-m5-3-100
Selling Points
- 1The Festo QSM-M5-3-100 push-in fitting is designed for high-performance pneumatic applications, ensuring reliable connections with a temperature range up to 80°C and operating pressure up to 6 bar.
- 2This fitting features a male thread M5 and a push-in connection for tubing with an outer diameter of 3 mm, making it versatile for various pneumatic systems.
- 3The QSM-M5-3-100 is constructed with durable materials, including brass and nickel-plated housing, ensuring high corrosion resistance and long-lasting performance.
- 4The push-in principle allows for quick and easy connections, reducing installation time and increasing efficiency in pneumatic systems.
- 5The product is part of Festo's comprehensive range of pneumatic fittings, ensuring compatibility and integration with other Festo components for seamless system operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 3.4g | Type of mounting | External hexagon, AF 8 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130777 |
Specifications may be subject to change without notice
