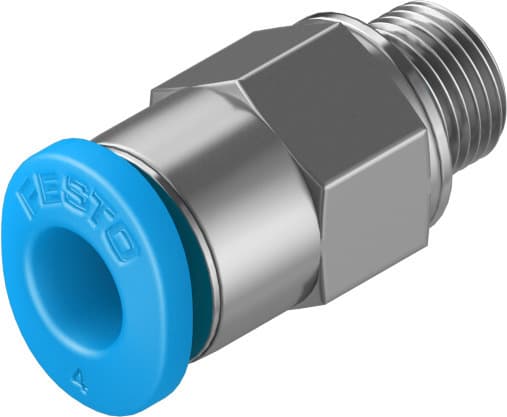

Festo QSM-M5-4-100 Push-in Fitting: Miniature Pneumatic Connection

Selling Points

1The Festo QSM-M5-4-100 push-in fitting is designed for miniature pneumatic applications, offering a compact size with a nominal diameter of 2.2 mm.
2Equipped with a sealing ring, this fitting ensures reliable and leak-free connections, making it suitable for various pneumatic systems.
3The QSM-M5-4-100 supports an operating pressure range of -0.95 to 6 bar, making it versatile for different pneumatic applications.
4With a corrosion resistance class of CRC 1, this fitting is designed to withstand low corrosion stress, ensuring durability in various environments.
5Featuring a push-pull principle and an optional mounting position, the QSM-M5-4-100 is easy to assemble and disassemble, reducing maintenance time and effort.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.2mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	1.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	3.2g	Type of mounting	External hexagon, AF 8
Pneumatic connection 1	External thread M5	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130778

Specifications may be subject to change without notice
