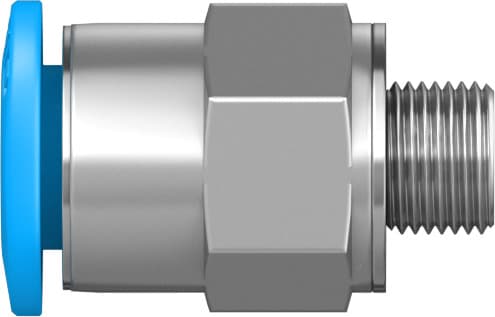

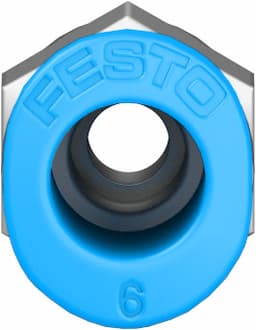

Festo QSM-M5-6-100 Push-in Fitting - High-Quality Pneumatic Connector

Selling Points

1The Festo QSM-M5-6-100 push-in fitting features a mini size with a nominal diameter of 2.1 mm, making it perfect for compact pneumatic systems.
2This fitting operates within a wide pressure range of -0.95 to 6 bar, ensuring reliable performance in various applications.
3With its push-pull principle, the QSM-M5-6-100 is easy to install and requires minimal effort, reducing installation time and increasing efficiency.
4Made from brass with a nickel-plated housing and using NBR for tube seals, this fitting offers low corrosion stress (CRC 1) and is RoHS compliant.
5The push-in fitting includes high-alloy stainless steel for the hose clamping segment, ensuring durability and longevity in demanding environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	1.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	4.5g	Type of mounting	External hexagon, AF 10
Pneumatic connection 1	External thread M5	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130779

Specifications may be subject to change without notice
