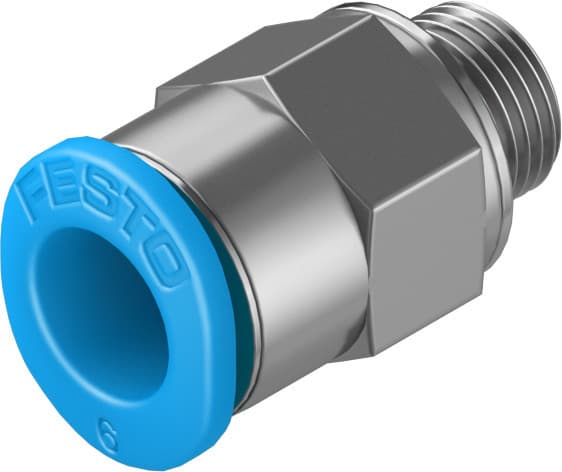

Festo QSM-M6-6 Push-in Fitting: Miniature, High-Performance Pneumatic Connector

Selling Points

1Miniature Design: The Festo QSM-M6-6 push-in fitting is designed to be miniaturized, making it perfect for space-constrained applications.
2High Operating Pressure: This fitting supports operating pressures up to 6 bar, ensuring reliable performance in various pneumatic systems.
3Sealing Ring for Secure Connection: Equipped with a sealing ring, the QSM-M6-6 provides a secure and leak-free connection, enhancing system efficiency.
4Optional Mounting Position: The fitting offers optional mounting positions, allowing for flexibility in installation and integration with different systems.
5Corrosion Resistance and Cleanroom Compatibility: Designed with low corrosion stress and conforming to VDMA24364-B1/B2-L standards, this fitting is suitable for cleanroom environments and ensures long-lasting performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.8mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Product weight	4.8g	Type of mounting	External hexagon, AF 10

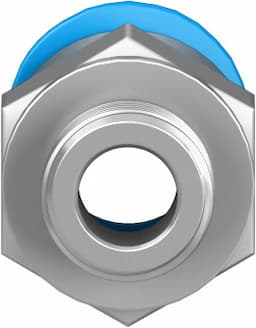

Pneumatic connection 1	External thread M6	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm

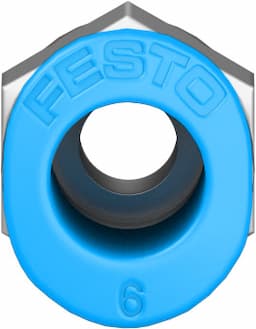

Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	132600

Specifications may be subject to change without notice
