Product Model

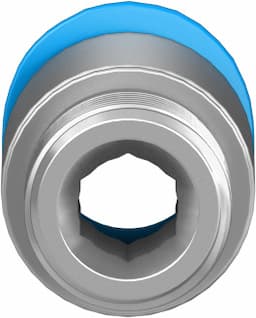

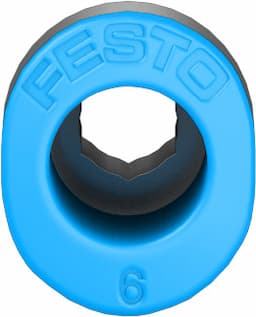

qsm-m7-1/4-i-u-m
Selling Points
- 1The Festo QSM-M7-1/4-I-U-M push-in fitting ensures a secure and leak-free connection for compressed air systems, making it ideal for various industrial applications.
- 2With a nominal size of 0.114 inches, this fitting is perfect for mini applications where space is limited, offering a compact and efficient solution.
- 3Equipped with a sealing ring, this fitting provides excellent durability and resistance to wear and tear, ensuring long-lasting performance.
- 4The QSM-M7-1/4-I-U-M can be assembled in any position, offering flexibility in installation and use, making it a versatile choice for different setups.
- 5This push-in fitting conforms to ISO 8573-1:2010 standards for compressed air and is RoHS-compliant, ensuring it meets the highest industry standards for quality and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.896mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 3.35Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 3.997g | Type of mounting | Internal hexagon, AF 4 |
Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
Ambient temperature Fahrenheit | 32°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | Brass Nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 183740 |
Specifications may be subject to change without notice
