Product Model
qsm-m7-1/8-i-u-m
Selling Points

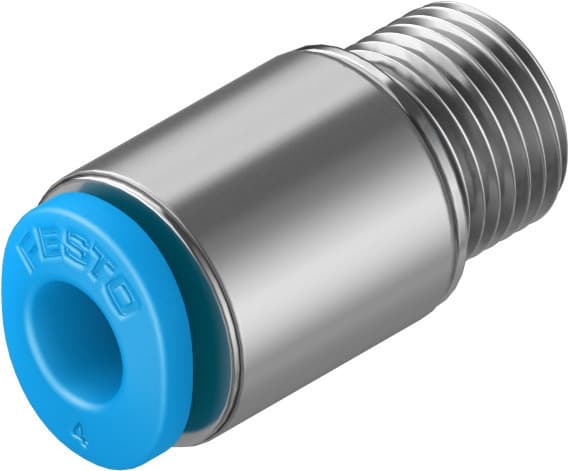

- 1The Festo QSM-M7-1/8-I-U-M push-in fitting is designed for mini applications, featuring a male thread with an internal hexagon socket for secure connections.
- 2This push-in fitting is manufactured by Festo, a renowned brand in pneumatic components, ensuring reliability and precision in your systems.
- 3The QSM-M7-1/8-I-U-M offers a sealing ring on the screw-in stud, providing a tight seal and preventing leaks in your pneumatic setup.
- 4The fitting is versatile and can be assembled in any position, making it suitable for various industrial applications where flexibility is crucial.
- 5With operating pressures ranging from -0.95 to 10 bar and temperatures from -10 to 80°C, this push-in fitting is suitable for a wide range of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.007mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 3.35Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 6.209g | Type of mounting | Internal hexagon, AF 2 |
Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/8" |
Ambient temperature Fahrenheit | 32°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | Brass Nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 183738 |
Specifications may be subject to change without notice
