Product Model

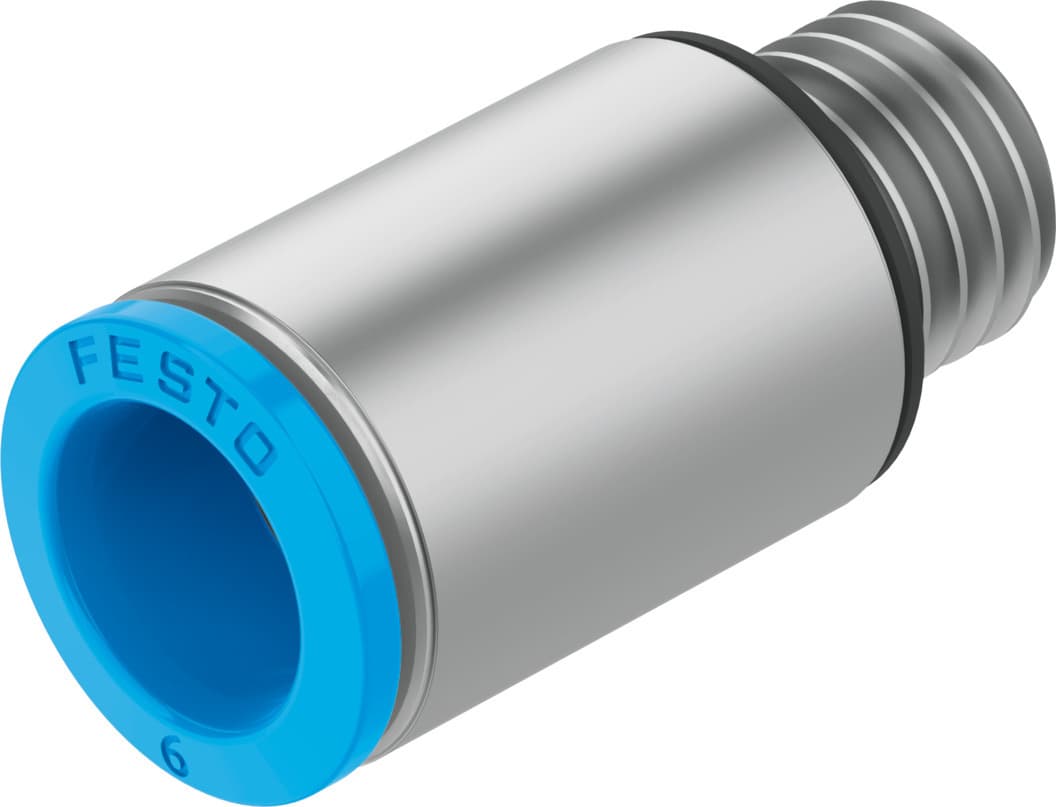

qsm-m7-6-i-r
Selling Points
- 1The Festo QSM-M7-6-I-R push-in fitting ensures quick and reliable connections in pneumatic systems, reducing downtime and improving overall efficiency.
- 2With a corrosion resistance class of CRC 1, this fitting is suitable for various environments, including those with low corrosion stress, ensuring long-lasting performance.
- 3Operating within a temperature range of -10°C to 80°C, the QSM-M7-6-I-R maintains its integrity even in extreme conditions, making it versatile for different applications.
- 4The optimized bending radius and push-pull design make installation straightforward, reducing the need for specialized tools and minimizing installation time.
- 5Meets ISO 8573-1:2010 standards and is RoHS compliant, ensuring compatibility with various pneumatic systems and adherence to environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 4.1mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | straight design, round releasing ring | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 2.2Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 6.4g | Type of mounting | Internal hexagon, AF 4 |
Pneumatic connection 1 | External thread M7 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 133007 |
