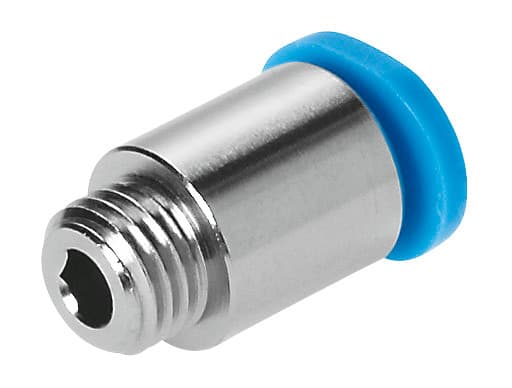

QSMP-M6X0.75-4 Push-in Fitting by Festo - High-Quality Pneumatic Connection

Selling Points

1The QSMP-M6X0.75-4 push-in fitting by Festo features a mini nominal size of 2.5 mm, making it perfect for compact pneumatic systems.
2This fitting supports operating pressures up to 6 bar and temperature-dependent pressures up to 14 bar, ensuring reliable performance in various conditions.
3The QSMP-M6X0.75-4 is designed with a push-pull principle, allowing for easy and secure connection and disconnection of pneumatic lines.
4The fitting is made from high-quality materials, including brass with a nickel plating for corrosion resistance and a POM release ring for durability.
5The QSMP-M6X0.75-4 is RoHS-compliant and suitable for lubricated operation, ensuring long-lasting performance in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.5mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Product weight	2.7g	Type of mounting	Internal hexagon, AF 2.5
Pneumatic connection 1	External thread M6x0.75	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153320

Specifications may be subject to change without notice
