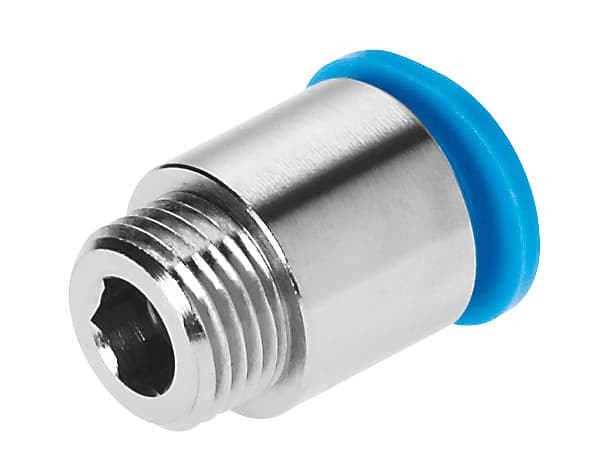

Festo QSMP-M8X0.75-6 Push-in Fitting for Compressed Air

Selling Points

1The QSMP-M8X0.75-6 features a push-in design with a male thread M8x0.75 and internal hexagon socket, making it easy to connect and disconnect pneumatic tubing.
2This fitting supports operating pressures from -0.95 to 6 bar and temperature-dependent pressures up to 14 bar, ensuring reliable performance across various conditions.
3With a corrosion resistance classification of CRC 1, the QSMP-M8X0.75-6 is designed to withstand low corrosion stress, making it suitable for diverse industrial applications.
4The fitting is RoHS compliant and made from brass with a nickel-plated housing, ensuring durability and compliance with environmental regulations.
5The QSMP-M8X0.75-6 can be assembled in any position, offering flexibility in system design and installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	4mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Product weight	3.7g	Type of mounting	Internal hexagon, AF 4
Pneumatic connection 1	External thread M8x0.75	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153322

Specifications may be subject to change without notice
