Product Model
qsms-3
Selling Points

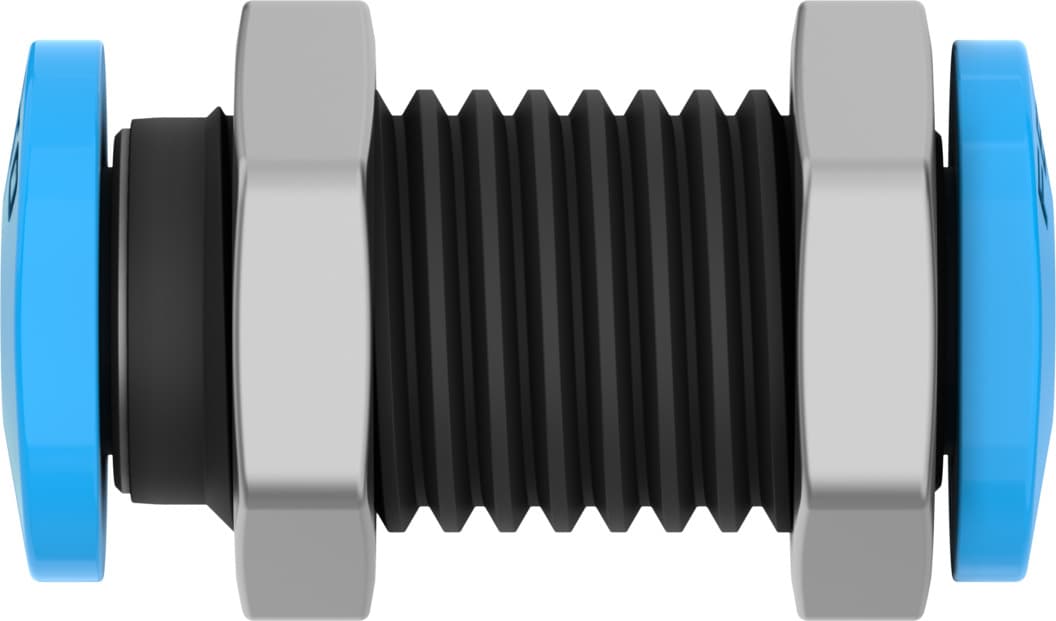

- 1The Festo QSMS-3 push-in bulkhead connector is designed in a mini size with a nominal width of 1.7 mm, making it perfect for compact pneumatic systems.
- 2This connector offers optional mounting positions, allowing for flexible installation in various applications.
- 3It operates within a wide temperature-dependent pressure range of -0.95 to 14 bar, ensuring reliable performance in diverse conditions.
- 4With a corrosion resistance class CRC 1, the QSMS-3 is designed to withstand low corrosion stress, ensuring long-lasting use in harsh environments.
- 5Made from RoHS-compliant materials, including anodized aluminum housing and POM release ring, this connector meets stringent environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.7mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 3g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Aluminum, anodized | Releasing ring material | POM |
Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153375 |
Specifications may be subject to change without notice
