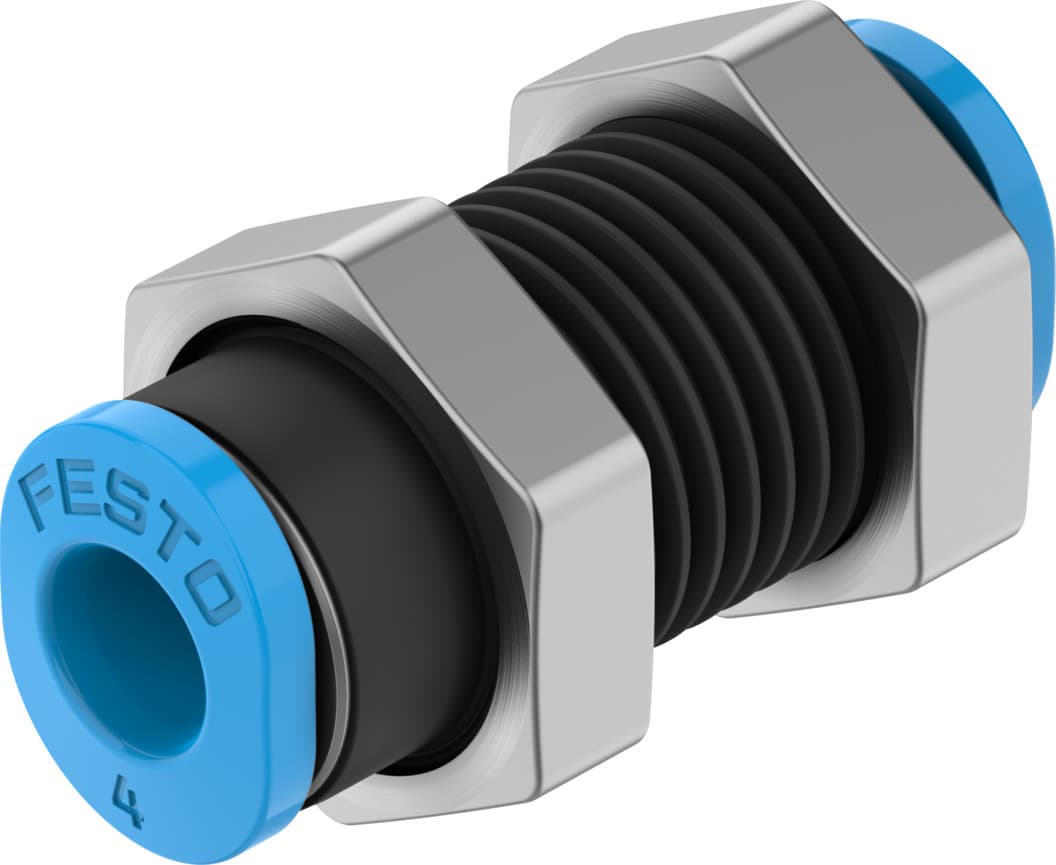

Festo QSMS-4-100 Push-in Bulkhead Connector - High-Quality Pneumatic Fittings

Selling Points

1The Festo QSMS-4-100 push-in bulkhead connector is designed with a mini nominal size of 2.2 mm, making it ideal for compact pneumatic systems.
2This connector features a push-pull principle for easy and secure assembly, ensuring reliable connections in various mounting positions.
3The QSMS-4-100 is compatible with compressed air as per ISO 8573-1:2010 and can operate within a temperature range of -10 °C to 80 °C, providing flexibility in different environments.
4The connector offers low corrosion stress with a corrosion resistance class (CRC) 1 and is compliant with LABS (PWIS) standards, ensuring durability in various applications.
5The product is made from high-quality materials, including anodized aluminum for the housing, POM for the release ring, and nickel-plated brass for the nut, ensuring robust performance and long-lasting operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.2mm
Mounting position	Any	Design	Bulkhead
Pack size	100	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	6g
Pneumatic connection 1	for pneumatic tubing outside diameter 4 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Aluminum, anodized	Releasing ring material	POM
Nut material	Brass, nickel-plated	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	130780

Specifications may be subject to change without notice
