Product Model
qsmt-4-100
Selling Points

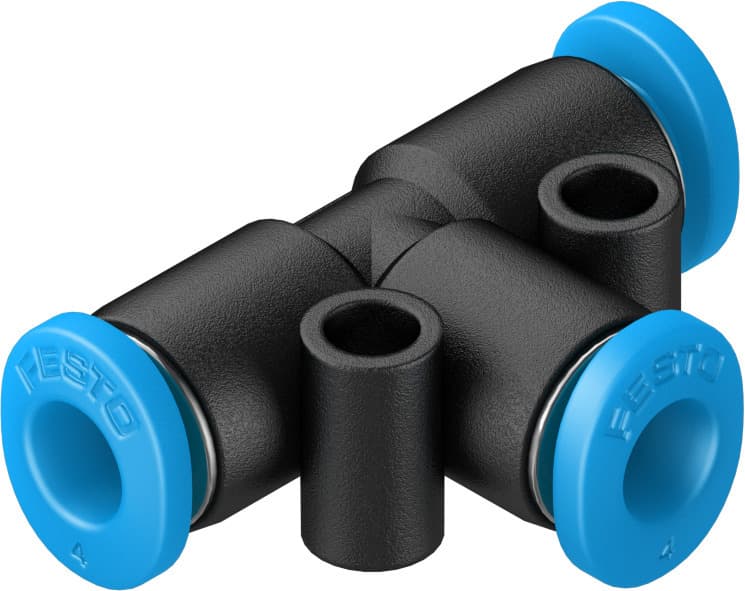

- 1The Festo QSMT-4-100 is a compact push-in T-connector, perfect for tight spaces and miniaturized pneumatic systems.
- 2This connector can be mounted in any position, providing flexibility in system design and installation.
- 3Designed for use with compressed air in accordance with ISO 8573-1:2010, ensuring reliable operation in various industrial settings.
- 4Classified as CRC 1, this product exhibits low corrosion stress, making it suitable for applications where corrosion resistance is crucial.
- 5Featuring a push-pull principle, the QSMT-4-100 simplifies the installation process, reducing the need for specialized tools or expertise.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.4mm |
Mounting position | Any | Design | T-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 3.3g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130782 |
Specifications may be subject to change without notice
