Product Model

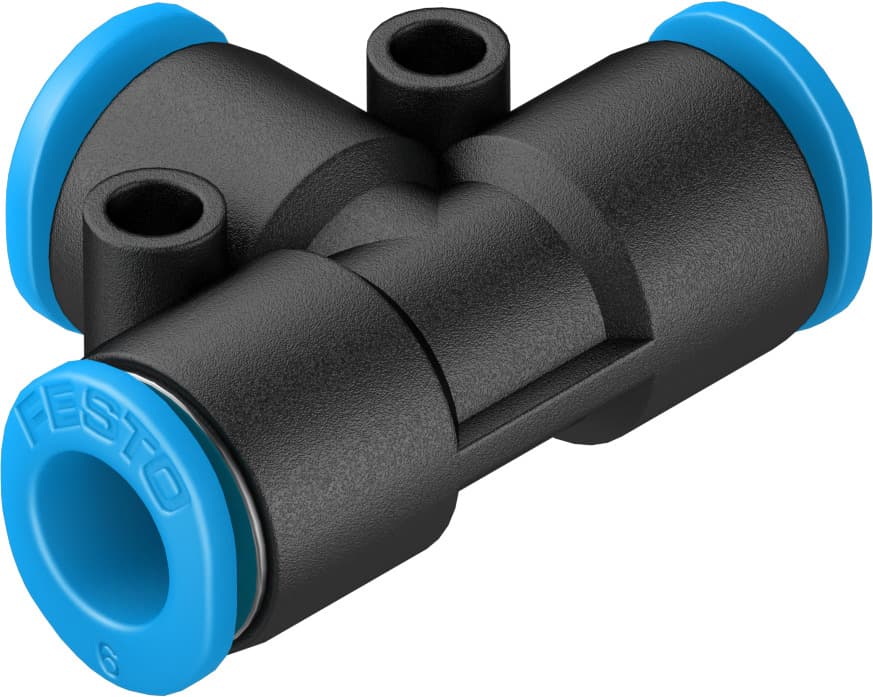

qsmt-6-100
Selling Points
- 1The Festo QSMT-6-100 features a miniaturized T-shape design, making it perfect for space-constrained applications in various industries.
- 2With its push-pull principle, the QSMT-6-100 ensures quick and effortless installation, reducing downtime and increasing efficiency.
- 3This connector operates within a wide temperature range of -10°C to 80°C and supports pressures from -0.95 bar to 6 bar, making it suitable for diverse environments.
- 4Constructed from high-quality PBT and POM materials, the QSMT-6-100 ensures durability and resistance to corrosion, ensuring long-lasting performance.
- 5The QSMT-6-100 meets ISO 8573-1:2010 standards for compressed air quality, ensuring it is compatible with various pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.4mm |
Mounting position | Any | Design | T-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 5.3g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130783 |
Specifications may be subject to change without notice
