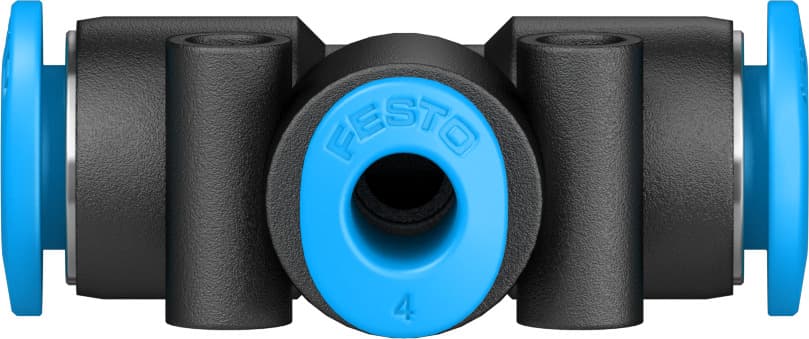

Festo QSMT-6-4 Push-in T-Connector: High-Quality Pneumatic Fitting

Selling Points

1The Festo QSMT-6-4 push-in T-connector is designed with a mini nominal size of 2.6 mm, making it ideal for compact pneumatic systems.
2This T-connector features a push-pull principle for easy assembly and disassembly, reducing the need for tools and increasing efficiency.
3The QSMT-6-4 operates within a wide temperature range of -10°C to 80°C and supports both lubricated and non-lubricated compressed air operations.
4With a corrosion resistance class of CRC 1, this connector offers low corrosion stress, ensuring durability in various environments.
5The QSMT-6-4 is available in packs of 10 units, featuring two pneumatic connections (one for 6 mm and one for 4 mm tubing diameters), making it versatile for multiple applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.6mm
Mounting position	Any	Design	T-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	4g
No. of outlets	2	No. of supply lines	1
Pneumatic connection 1	For pneumatic tubing outside diameter 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153369

Specifications may be subject to change without notice
