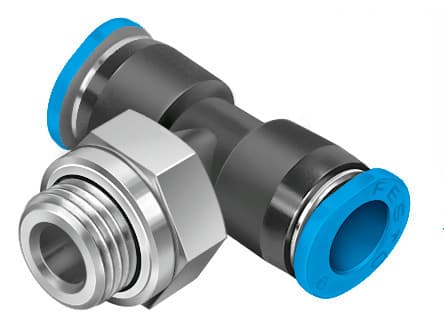

Festo QSMT-G1/8-4 Push-in T-Fitting | High-Quality Pneumatic Connection

Selling Points

1The QSMT-G1/8-4 features a mini size with a nominal width of 2.4 mm, making it perfect for compact pneumatic systems.
2Equipped with a sealing ring on the screwed plug, ensuring reliable and leak-free connections in various mounting positions.
3Designed with a push-pull principle, this fitting is easy to assemble and disassemble, reducing installation time and effort.
4Compatible with operating pressures up to 6 bar and temperature-dependent pressures up to 14 bar, suitable for a wide range of pneumatic applications.
5Classified as CRC 1, indicating low corrosion stress, ensuring durability in various environments and applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.4mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	T-shape	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	5.4Nm	Tolerance for nominal tightening torque	± 20%
Product weight	10g	No. of outlets	2
No. of supply lines	1	Type of mounting	External hexagon, AF 13
Pneumatic connection 1	External thread G1/8	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	186272

Specifications may be subject to change without notice
