Product Model

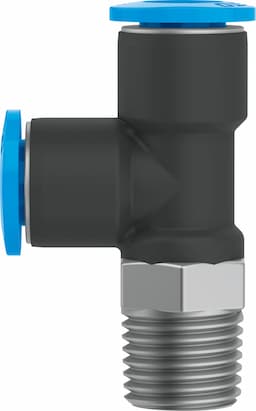

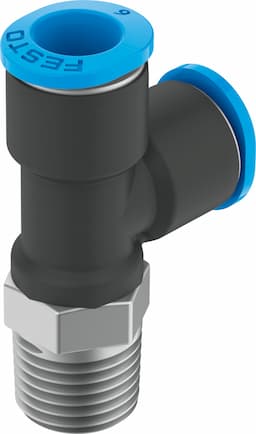

qsmtl-1/8-6
Selling Points
- 1The QSMTL-1/8-6 features a mini size with a nominal width of 3.3 mm, making it perfect for space-constrained applications.
- 2This push-in T-fitting operates within a wide pressure range of -0.095 MPa to 0.6 MPa, ensuring reliable performance in various conditions.
- 3The QSMTL-1/8-6 offers optional mounting positions and an L-shape design with an additional push-in connector, providing flexibility in installation.
- 4With a corrosion resistance class (CRC) of 1, this component is designed to withstand low corrosion stress, ensuring durability in harsh environments.
- 5The push-pull principle design and nominal tightening torque of 7 Nm with a ±20% tolerance make installation straightforward and efficient.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, additional push-in connector, lengthwise | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 8.5g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153364 |
