Festo QSMX-3 Pneumatic Fittings - High-Quality Air Connectors

Selling Points

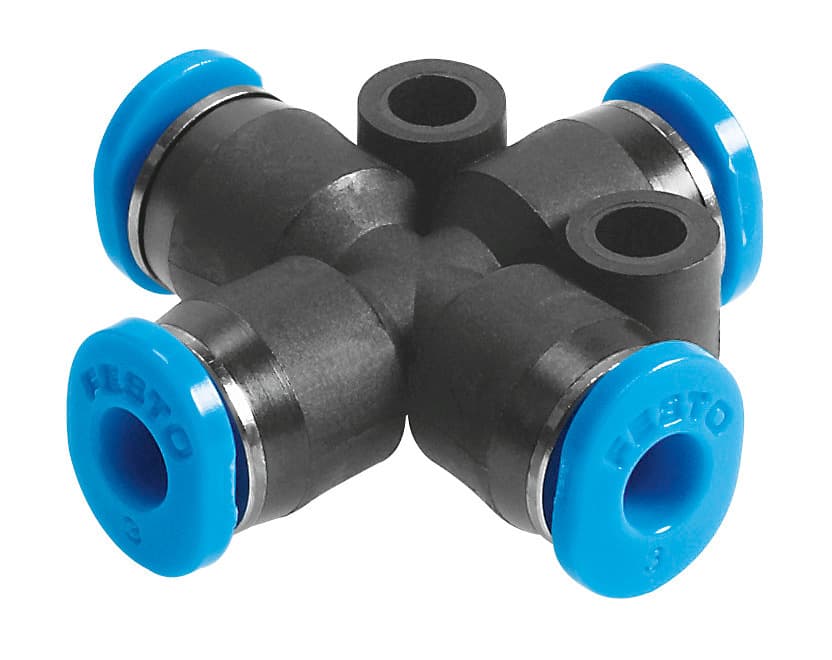

1The Festo QSMX-3 is a versatile pneumatic fitting with an X-shape design, featuring 1 inlet and 3 outlets, making it suitable for a wide range of tasks.
2This fitting is made from highly resistant materials, including PBT for the body, NBR for the tubing seal, and POM for the releasing ring, ensuring durability and flexibility.
3The QSMX-3 is designed with an optimized bending radius, making it easy to install and reducing the risk of damage during handling.
4With a pressure range of -0.95 to 6 bar and an ambient temperature range of -10 to 80°C, this fitting meets all requirements for standard applications with increased pressure and temperature ranges.
5The Festo QSMX-3 is compliant with ISO 8573-1:2010 and RoHS standards, ensuring it meets high-quality and safety standards in pneumatic applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	1.7mm
Mounting position	Any	Design	X-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	4g
No. of outlets	3	No. of supply lines	1
Pneumatic connection 1	for pneumatic tubing outside diameter 3 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 3 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153378
