Product Model
qsmy-3
Selling Points
- 1The QSMY-3 is made from durable materials like Polybutylene terephthalate (PBT) for the body, Polyoxymethylene (POM) for the release ring, and NBR for the tubing seal, ensuring high abrasion resistance and corrosion resistance.

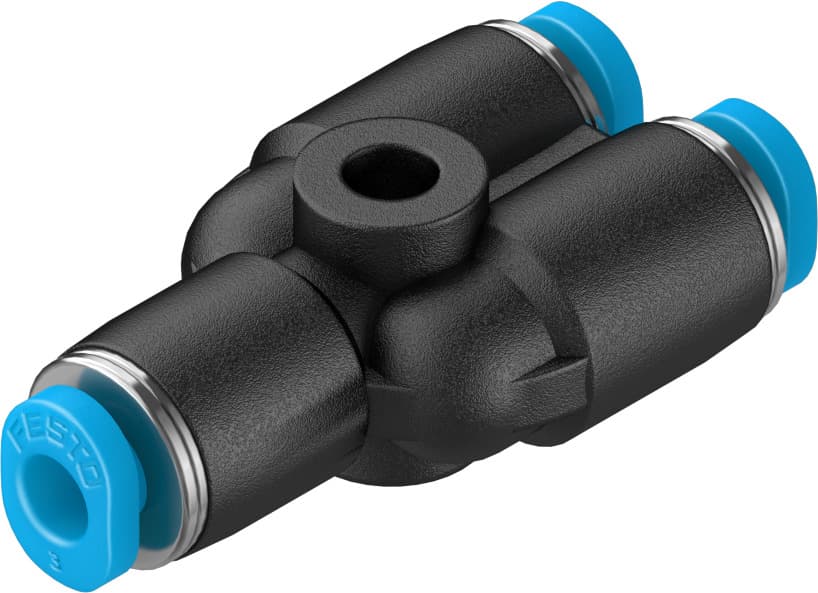

- 2Designed with a push-pull principle, the QSMY-3 offers an optimized bending radius, making it easy to install in any position, whether it's a mini or standard application.
- 3This Y-shaped connector operates within a wide temperature range of -10°C to 80°C and supports pressures from -0.95 bar to 6 bar, with temperature-dependent operating pressure up to 14 bar.
- 4The QSMY-3 meets all requirements for standard applications with increased pressure and temperature ranges, adhering to ISO 8573-1:2010 and being RoHS compliant.
- 5Suitable for a wide range of tasks, the QSMY-3 offers maximum flexibility due to its highly resistant materials and is designed to meet all requirements even in dynamic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.6mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 3.7g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153370 |
Specifications may be subject to change without notice
