Product Model
qsmy-4-100
Selling Points

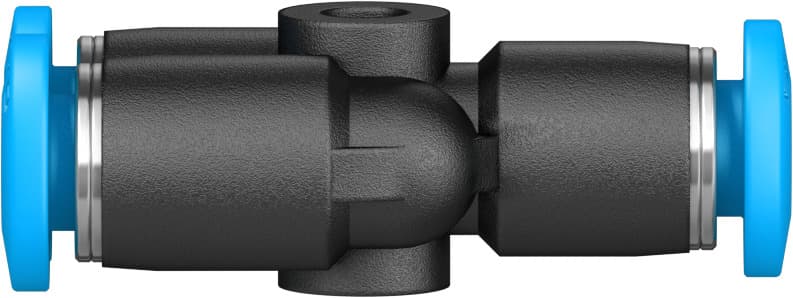

- 1The Festo QSMY-4-100 is a miniature push-in Y-connector designed for compact pneumatic systems, featuring a nominal size of 1.7 mm and a push-pull principle for easy installation.
- 2This connector operates within a wide temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, making it versatile for various applications.
- 3The QSMY-4-100 is constructed with high-quality materials, including PBT for the housing, POM for the release ring, and NBR for the tubing seal, ensuring durability and corrosion resistance.
- 4With a product weight of 3.5 grams and two outlets, this connector is lightweight and efficient, suitable for use in compressed air systems compliant with ISO 8573-1:2010.
- 5The Festo QSMY-4-100 is RoHS-compliant and available in packs of 100 units, making it an excellent choice for industrial automation and pneumatic system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.7mm |
Mounting position | Any | Design | Y-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 3.5g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130786 |
Specifications may be subject to change without notice
