Product Model
qsmy-6-4
Selling Points

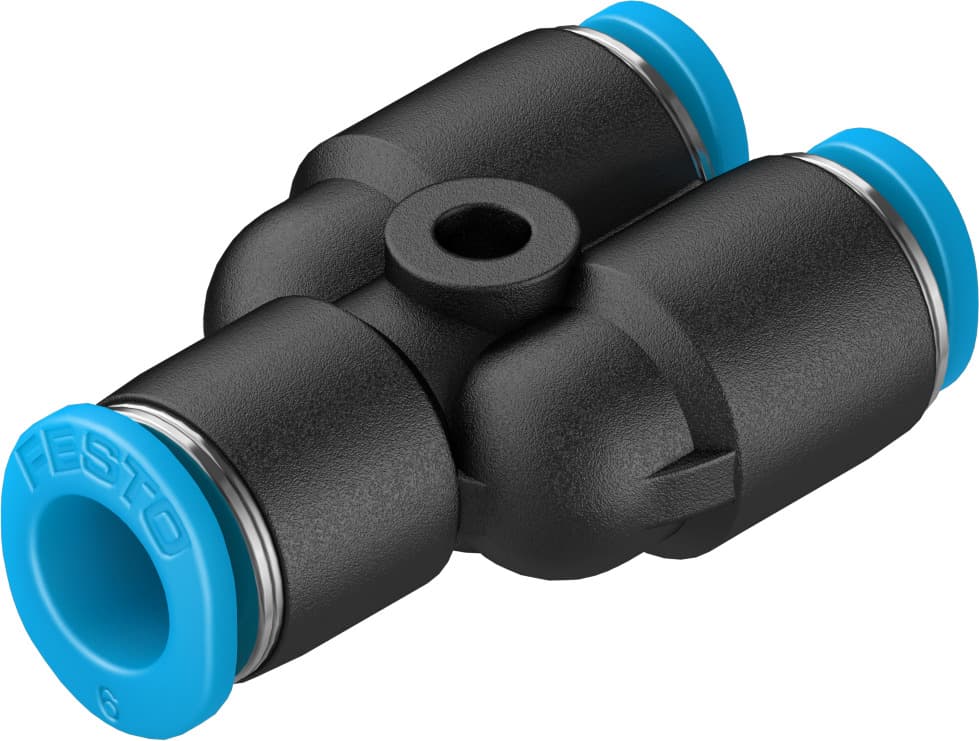

- 1The Festo QSMY-6-4 is a versatile pneumatic Y-connector that ensures optimal air flow and reliable connections, making it a crucial component for maintaining system integrity and performance in various industrial applications.
- 2This high-performance fitting features a push-pull design with a Y-shape, allowing for easy installation and maximum flexibility in standard applications. It is suitable for a wide range of tasks and attractively priced.
- 3The QSMY-6-4 operates within a broad temperature range of -10°C to 80°C and supports temperature-dependent operating pressures up to 14 bar, ensuring it meets all requirements even for standard applications with increased pressure and temperature ranges.
- 4Made from highly resistant materials like polybutylene terephthalate (PBT) for the body, polyoxymethylene (POM) for the releasing ring, and NBR tubing seal, this fitting offers high abrasion resistance in dynamic applications and is RoHS-compliant.
- 5The Festo QSMY-6-4 is compliant with ISO 8573-1:2010 standards and supports operation with oil lubrication, making it a reliable choice for compressed air systems in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 5.3g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153374 |
Specifications may be subject to change without notice
