Product Model
qsp10-4
Selling Points

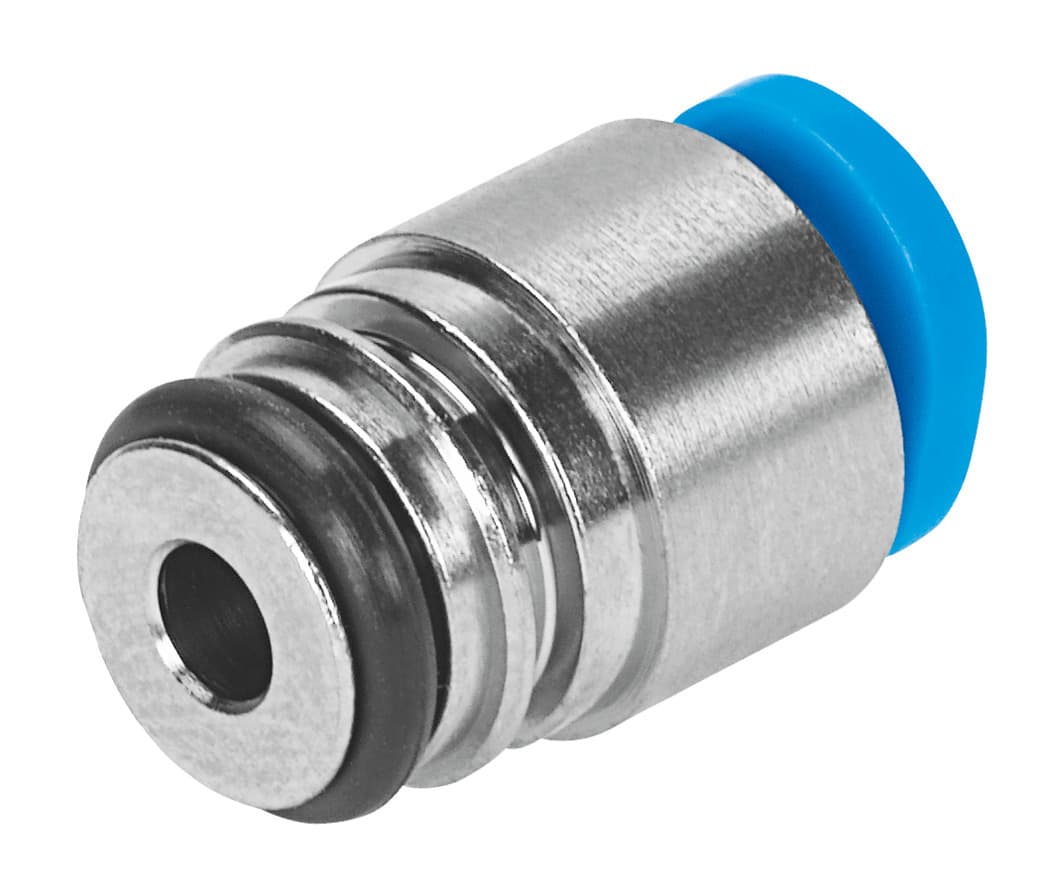

- 1The Festo QSP10-4 cartridge features an O-ring seal on the screwed plug, ensuring a secure and leak-free connection.
- 2This cartridge is designed with a straight design and operates on the push-pull principle, making it easy to install and use.
- 3The QSP10-4 is compatible with compressed air as per ISO 8573-1:2010, making it suitable for a wide range of pneumatic applications.
- 4The cartridge operates within a temperature range of 0°C to 60°C and can be used with lubricated media, enhancing its durability and performance.
- 5The housing material is nickel-plated brass, conforming to RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Type of mounting | Mounting pin |
Pneumatic connection 1 | Cartridge 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Manufacturer ID | 172972 |
Specifications may be subject to change without notice
