Product Model
qsp10-6
Selling Points

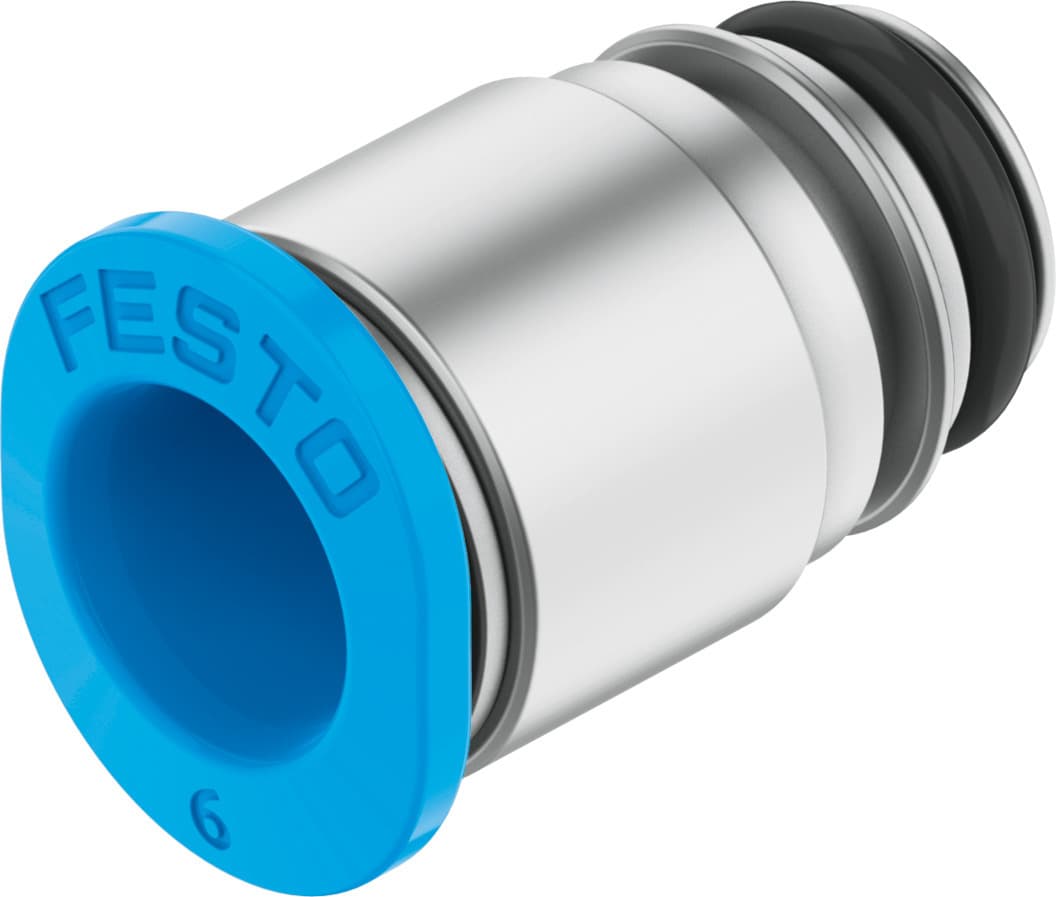

- 1The Festo QSP10-6 pneumatic cartridge is designed with an O-ring seal on the screw-in stud, ensuring reliable and leak-free operations.
- 2This cartridge operates within a wide temperature range of 0 to 60 °C and supports lubricated operation for enhanced performance.
- 3The QSP10-6 features a straight design with a push-pull principle, making it easy to assemble and disassemble as needed.
- 4With an operating pressure range of -0.95 to 10 bar, this cartridge is suitable for various compressed air applications, including industrial settings.
- 5The nickel-plated brass housing of the QSP10-6 conforms to RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Type of mounting | Mounting pin |
Pneumatic connection 1 | Cartridge 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Manufacturer ID | 172973 |
Specifications may be subject to change without notice
