Product Model

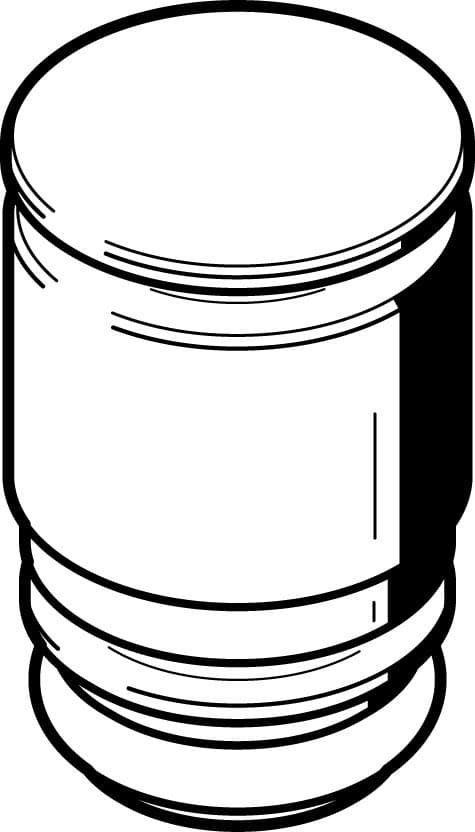

qsp10-ptb
Selling Points
- 1The Festo QSP10-PTB operates within a wide pressure range of 0.095 MPa to 1 MPa, ensuring reliable performance across various applications.
- 2This blanking plug offers optional mounting positions, providing flexibility in installation and integration with different pneumatic systems.
- 3Featuring a straight design, the QSP10-PTB is easy to handle and integrate into your pneumatic setup, reducing complexity and enhancing usability.
- 4The QSP10-PTB is designed to operate with compressed air as per ISO 8573-1:2010, ensuring compatibility with international standards for pneumatic systems.
- 5This blanking plug supports lubricated operation, enhancing its durability and performance in demanding pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Operating pressure for entire temperature range | 13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Product weight | 1.1g | Type of mounting | Mounting pin |
Pneumatic connection 1 | Cartridge 10 mm | Note on materials | RoHS-compliant |
Housing material | PA | Material of tubing seal | NBR |
Manufacturer ID | 172976 |
Specifications may be subject to change without notice
