Product Model
qspc10
Selling Points

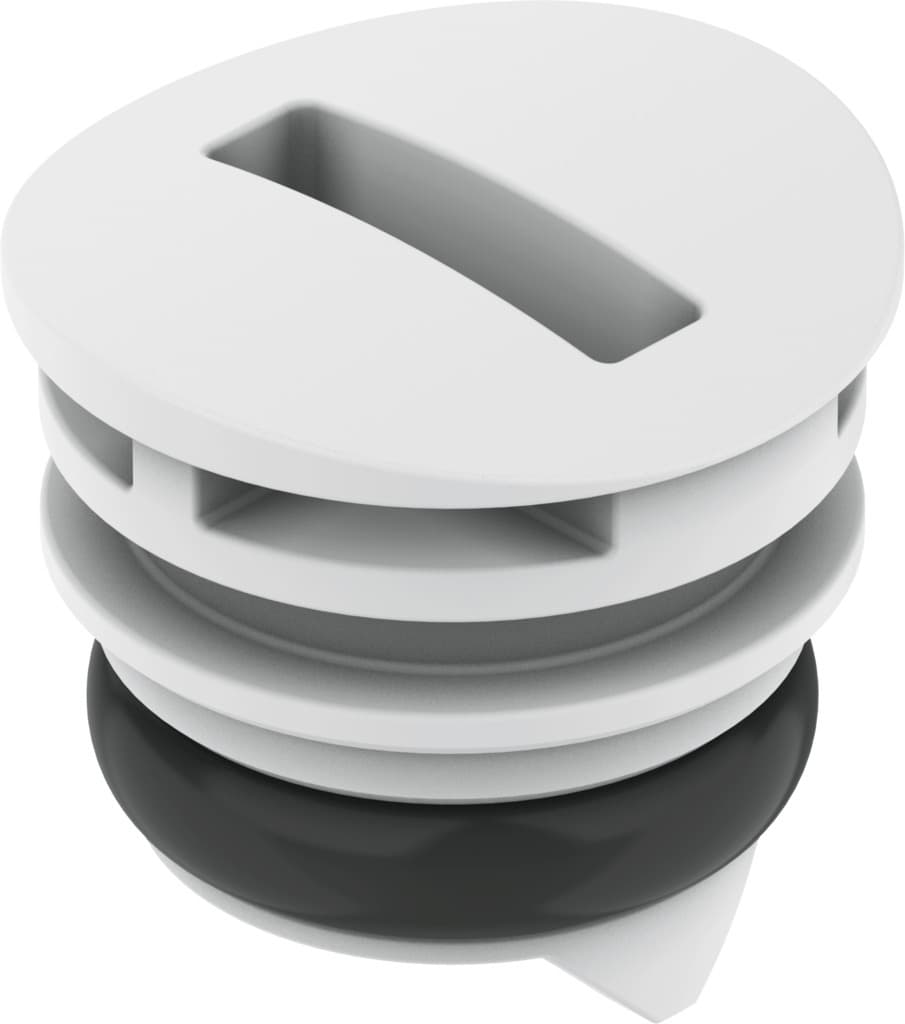

- 1Seal Connections Efficiently: The QSPC10 Blanking Plug from Festo ensures secure sealing of connections on valves or blanking plates.
- 2Corrosion-Resistant Material: Made from POM material, free of copper and PTFE, and conforming to RoHS standards for high corrosion resistance.
- 3Wide Temperature Range: Operates effectively in a temperature range of -5 to 60°C, making it versatile for various applications.
- 4Compact Design: Weighs only 0.4 grams, ideal for applications requiring minimal weight and space.
- 5Compliant with Industry Standards: Meets all necessary standards for pneumatic systems, ensuring reliability and safety in use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Design | Straight design |
Pack size | 10 | Operating pressure for entire temperature range | 0psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -5°C 60°C |
Product weight | 0.4g | Type of mounting | Mounting pin |
Pneumatic connection 1 | Cartridge 10 mm | Note on materials | RoHS-compliant |
Blanking plug material | POM | O-ring material | NBR |
Manufacturer ID | 562243 |
Specifications may be subject to change without notice
