Product Model

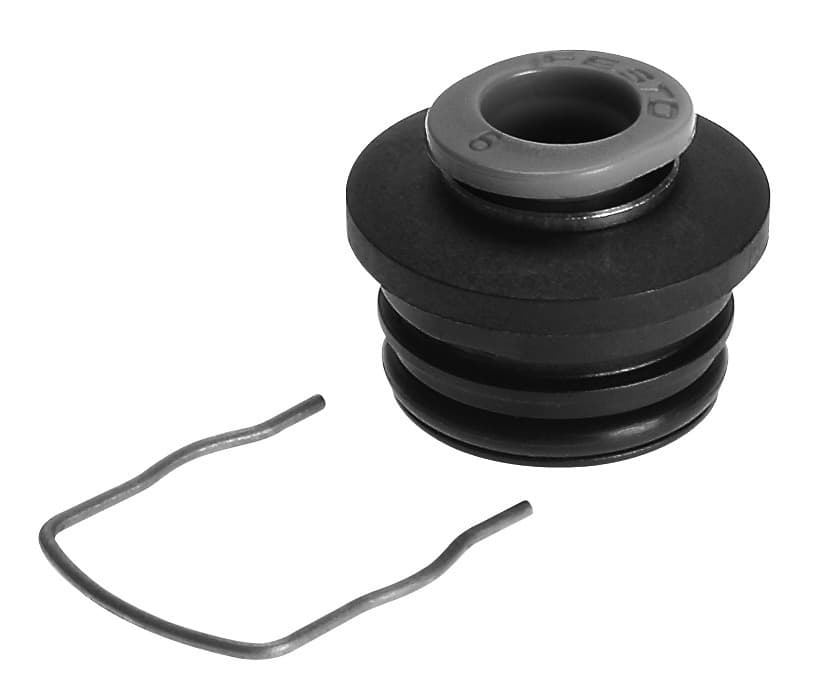

qspk18-3/8-u
Selling Points
- 1The QSPK18-3/8-U cartridge features a standard size of 6.7 mm nominal size, making it versatile for various pneumatic connections.
- 2This cartridge offers an optional mounting position, providing flexibility in installation and usage.
- 3The straight design and push-pull principle ensure easy and reliable operation, reducing the risk of misalignment.
- 4The QSPK18-3/8-U operates within a wide pressure range of -0.095 MPa to 1 MPa, ensuring compatibility with various pneumatic systems.
- 5Made from RoHS-compliant materials, including PA-reinforced housing and POM release ring, this cartridge offers low corrosion stress and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 8.2g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132174 |
Specifications may be subject to change without notice
