Product Model
qspkg10-3
Selling Points

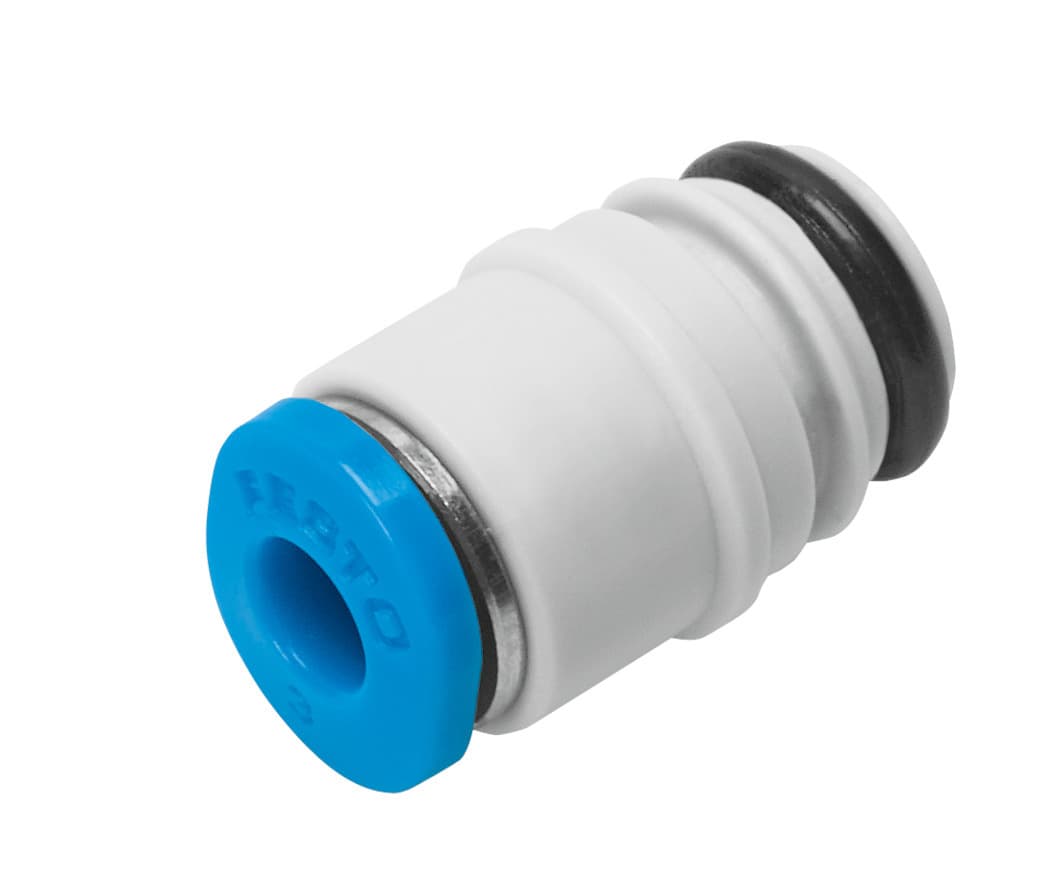

- 1The Festo QSPKG10-3 cartridge features a mini size with a nominal width of 1.6 mm, making it ideal for compact pneumatic systems.
- 2This cartridge operates on the push-pull principle, ensuring easy and secure connection and disconnection without the need for tools.
- 3It supports operating pressures from -0.95 to 10 bar, covering a broad range of pneumatic applications and temperatures from -5 to 60 °C.
- 4The QSPKG10-3 is designed with low corrosion stress (CRC 1), making it suitable for use in environments where corrosion is a concern.
- 5The cartridge offers optional mounting positions, allowing for flexible integration into various pneumatic systems and configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 1.6mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 1.5g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132621 |
Specifications may be subject to change without notice
