Product Model

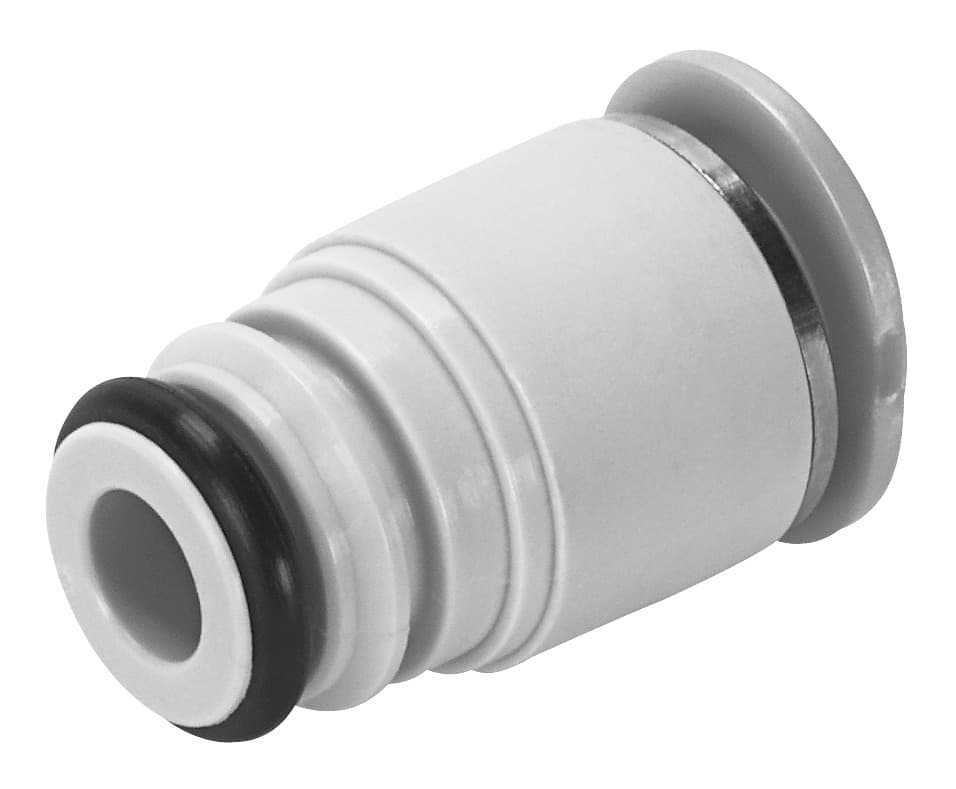

qspkg10-5/32-u
Selling Points
- 1The Festo QSPKG10-5/32-U cartridge features a mini size, making it perfect for compact systems and space-constrained applications.
- 2With a nominal width of 2.3mm and pneumatic connections for both 10mm and 5/32" tubing diameters, this cartridge offers flexibility in various pneumatic setups.
- 3Operating pressures range from -0.95 to 10 bar, making it suitable for a wide range of pneumatic applications.
- 4The cartridge is designed with low corrosion stress class C (CRC) and is made from PA-reinforced housing material, ensuring durability and reliability.
- 5The push-pull principle design allows for easy mounting and dismounting, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 1.4g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 5/32" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132624 |
Specifications may be subject to change without notice
