Product Model
qspkg10-6
Selling Points

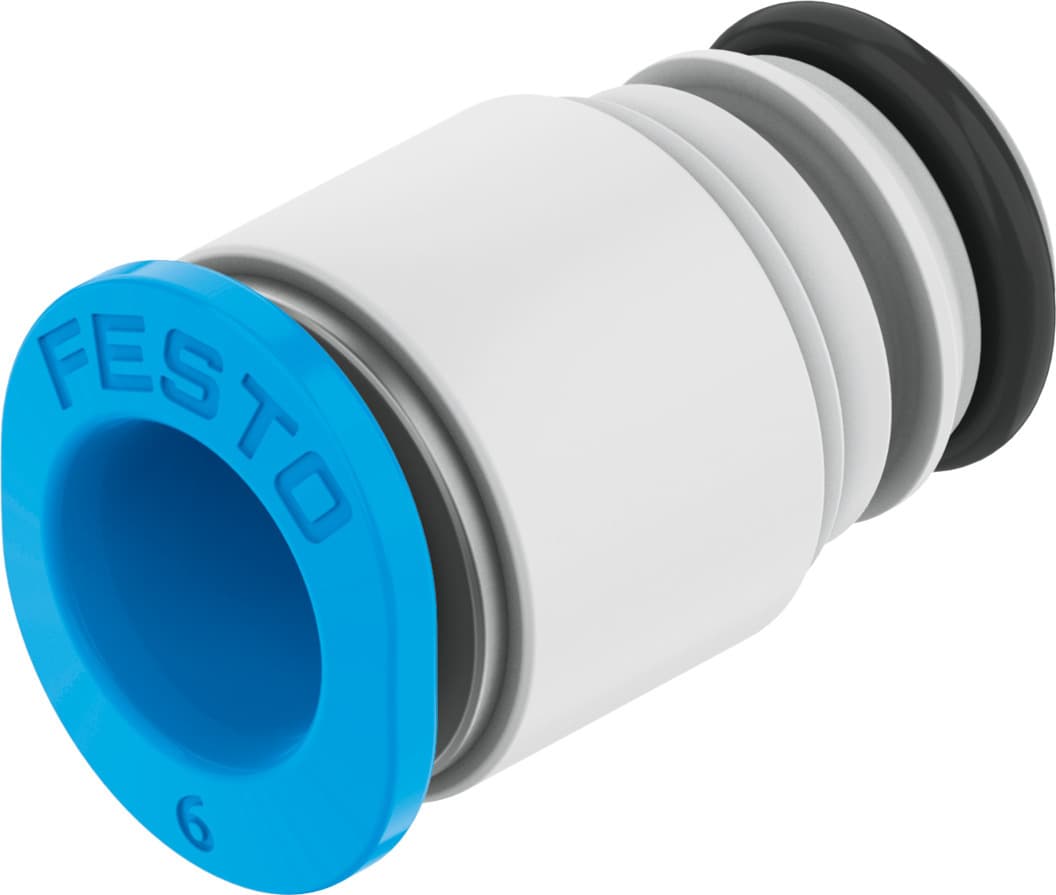

- 1The Festo QSPKG10-6 cartridge features a straight design with a mini nominal size of 3.7 mm, ensuring precise fits in tight spaces.
- 2With an optional mounting position and any assembly position, this cartridge offers flexibility in various pneumatic system configurations.
- 3Made from PA-reinforced housing and POM release ring, the QSPKG10-6 ensures durability and reliability in demanding applications.
- 4Classified as CRC 1, this cartridge exhibits low corrosion stress, making it suitable for use in environments with moderate corrosive conditions.
- 5Compatible with lubricated operation and operating medium compressed air to ISO 8573-1:2010, the QSPKG10-6 supports a wide range of pneumatic system requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.7mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 1.8g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132623 |
Specifications may be subject to change without notice
