Product Model
qspkg14-1/4-u
Selling Points

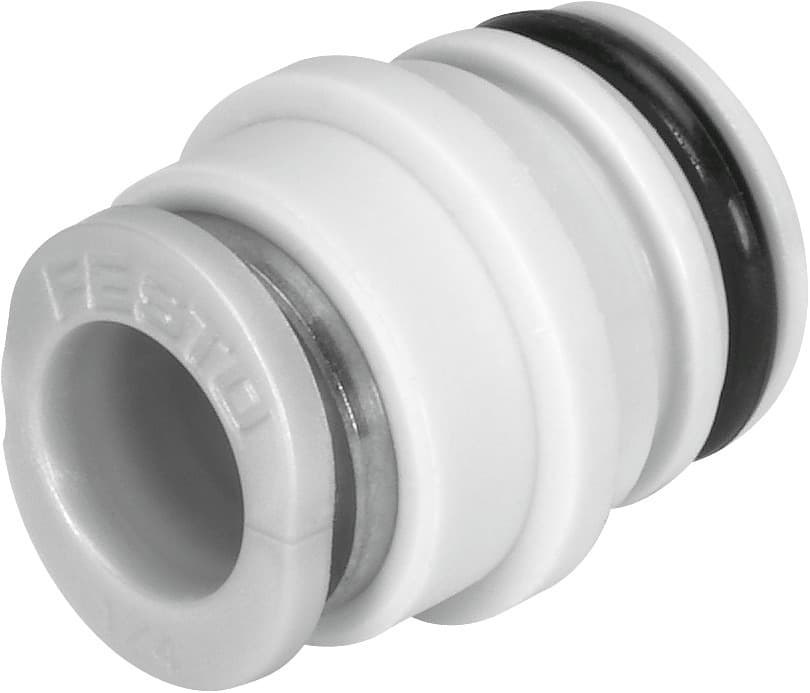

- 1The Festo QSPKG14-1/4-U pneumatic cartridge is designed with a push-pull principle, ensuring smooth and reliable operation in mini applications.
- 2This cartridge can be mounted in any position, offering flexibility in your automation setup.
- 3Compatible with compressed air as per ISO 8573-1:2010, this cartridge operates effectively in a wide range of environments.
- 4With a corrosion resistance class of 1, the QSPKG14-1/4-U is designed to withstand low corrosion stress, ensuring durability in various conditions.
- 5The cartridge supports lubricated operation, enhancing its performance and longevity in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.9mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 2.3g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 14 mm |
Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132932 |
Specifications may be subject to change without notice
