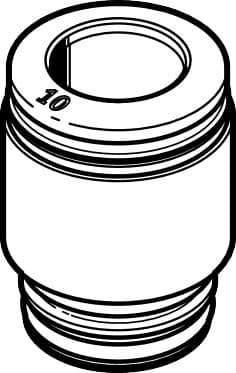

Festo QSPKG18-3/8-U Cartridge: High-Performance Pneumatic Component

Selling Points

1The Festo QSPKG18-3/8-U cartridge features a standard size of 6.7 mm nominal width with a straight design, ensuring compatibility with various pneumatic systems.
2This cartridge operates within a wide pressure range of -0.095 MPa to 1 MPa (-13.775 psi to 145 psi), making it suitable for diverse industrial applications.
3Designed to work with compressed air as per ISO 8573-1:2010, this cartridge ensures reliable performance in pneumatic systems.
4With a corrosion resistance class of CRC 1 - Low corrosion stress, the QSPKG18-3/8-U cartridge is built to withstand harsh industrial environments.
5Ideal for use in computer software, flexible manufacturing systems, X-Ray inspection machines, and robotics, this cartridge is a versatile component in industrial automation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6.7mm
Mounting position	Any	Design	Straight design
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 145psi	Maritime classification	See certificate
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5°C 60°C	Product weight	8.1g
Type of mounting	Mounting pin	Pneumatic connection 1	Cartridge 18 mm
Pneumatic connection 2	for pneumatic tubing outside diameter 3/8"	Ambient temperature Fahrenheit	23°F 140°F
Releasing ring color	Gray	Note on materials	RoHS-compliant
Housing material	PA-reinforced	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	132652

Specifications may be subject to change without notice
