Product Model

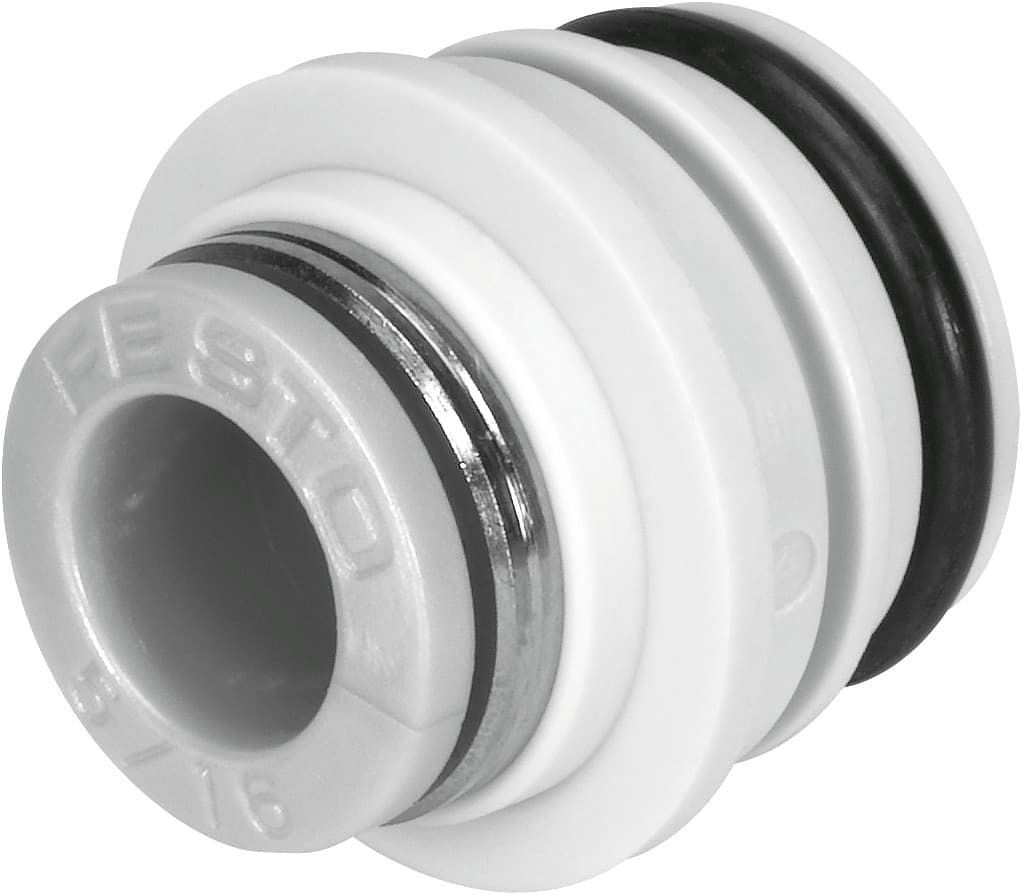

qspkg18-5/16-u
Selling Points
- 1The FESTO QSPKG18-5/16-U cartridge features a standard nominal size of 5.5 mm, making it versatile for various industrial pneumatic applications.
- 2This cartridge operates within a pressure range of -0.95 to 10 bar, ensuring reliable performance in diverse environments.
- 3With a push-pull principle design, the QSPKG18-5/16-U cartridge offers easy mounting and operation, enhancing efficiency in pneumatic systems.
- 4The housing material is PA-reinforced, providing excellent durability and resistance to corrosion, classified as CRC 1 - Low corrosion stress.
- 5The cartridge is designed for use with compressed air as per ISO 8573-1:2010, ensuring compliance with industry standards for operating media.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.5mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 5.4g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132651 |
Specifications may be subject to change without notice
