Product Model

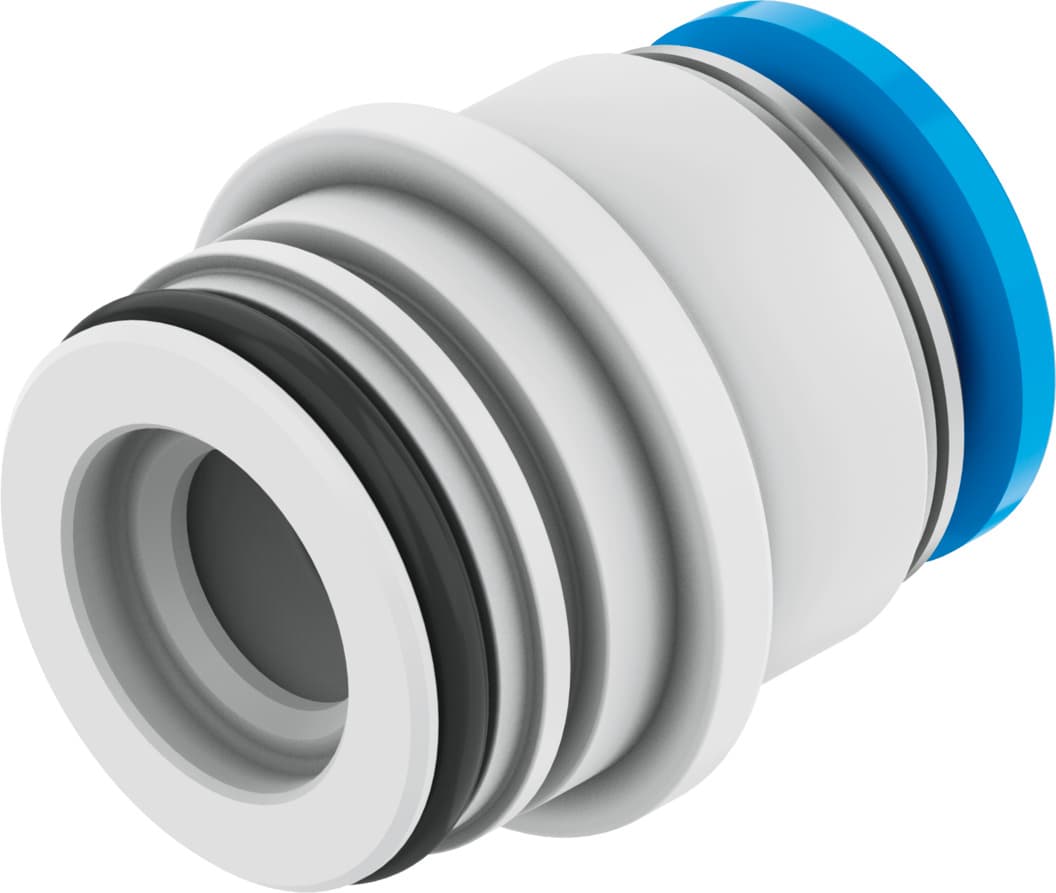

qspkg18-8
Selling Points
- 1The Festo QSPKG18-8 features a straight design and push-pull principle, ensuring reliable and efficient operation in pneumatic systems.
- 2Available for any mounting position, this cartridge fitting can be easily integrated into various pneumatic setups, enhancing flexibility in your applications.
- 3Designed to operate with compressed air as per ISO 8573-1:2010, this fitting is suitable for a wide range of industrial applications.
- 4With a corrosion resistance class of CRC 1, the QSPKG18-8 offers low corrosion stress, ensuring durability in harsh environments.
- 5The cartridge fitting allows for lubricated operation, making maintenance easier and extending the lifespan of the component.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.5mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 5.4g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132649 |
Specifications may be subject to change without notice
